A FRACTURE ZONE EXTRACTION METHOD FOR LIDAR POINT CLOUD BASED ON MULTI-SCALE NEURAL NETWORK WITH RS-CONV

doi:10.3969/j.issn.0253-4967.2024.03.013

Abstract

Abstract:

Fracture zones are geological formations resulting from the strong movement of the Earth’s crust, often manifesting as fragile and sensitive areas. These zones are closely linked to natural disasters such as earthquakes and landslides. Accurate extraction of fracture zones is crucial for quantitative studies of earthquake faults, providing a scientific basis for risk assessment and decision-making in earthquake prevention and mitigation. Thus, an in-depth study to determine their distribution patterns and surface geometry is essential for understanding earthquake dynamics and mechanisms.

This paper addresses the shortcomings of existing methods in extracting fracture zones from LiDAR point clouds, which often suffer from incomplete extraction, poor continuity, and high error rates. We propose a method based on a multi-scale neural network with RS-Conv to improve the automatic extraction of fault zones in complex terrain regions. Fracture zones exhibit complex morphologies and scale features; therefore, single-scale neighborhood point sets fail to reveal their intrinsic structural information fully. Our approach begins by constructing neighborhood point sets at different spatial scales to comprehensively examine geometric features at various levels within the point cloud. The RS-Conv operator effectively portrays the spatial relationship between the center point and neighboring points. We then build a multi-scale neural network model using the RS-Conv operator as the convolution module. This model captures the spatial relationships in the point cloud, efficiently extracting deep features at different scales. The extracted multi-scale features are concatenated to form a richer and more comprehensive feature representation, which is inputted into a fully connected layer to classify the centroid and solve the fracture zone extraction problem. We compared our method with the Tensor Decomposition and Deep Neural Networks(DNN)methods using the ISPRS point cloud dataset, the Sichuan-Yunnan point cloud dataset, and the Xianshuihe dataset. Results show that our method achieves the highest classification accuracy across all three datasets. Specifically, our method’s total classification error is only 0.3%, a reduction of 0.91% -2.79%compared to other methods. This significant error reduction demonstrates the accuracy, stability, and reliability of our proposed method in handling complex point cloud data. The main conclusions of this study are as follows:

(1)The construction of neighborhood point sets at different scales reveals that the combination of these scales significantly impacts the model’s classification performance. Selecting appropriate scale combinations is crucial for optimizing the model’s classification accuracy, facilitating better distinction between fracture zone points and non-fracture zone points.

(2)Compared to traditional and machine learning methods, the deep learning network model developed in this study shows significant advantages in extracting fracture zones from point clouds. The model can automatically learn deep features from point cloud data and process large-scale, high-dimensional point cloud datasets, thereby achieving more accurate fracture zone extraction in complex terrain conditions.

(3)Comparative experiments on different datasets further demonstrate the proposed method’s generalization ability. It is effective not only in extracting fracture zones under single terrain conditions but also in maintaining stable performance across multiple terrain conditions. This adaptability enhances the extraction of fracture zones in various terrain scenarios.

In conclusion, the method proposed in this paper offers a novel approach to fracture zone extraction. It achieves higher classification accuracy compared to existing traditional and machine learning methods, effectively addressing the challenge of fracture zone extraction in complex terrain areas.

Key words: LiDAR point cloud, multi-scale neighborhood point sets, deep learning, fracture zone extraction

摘要：

断裂带与地震、滑坡等自然灾害的发生有着密切关系, 精准提取断裂带不仅可为地震断层的定量化研究提供指导, 还可为地震灾害风险评估及防震减灾决策的制定提供科学依据。针对现有方法中LiDAR点云断裂带提取不完整、连续性差及错误率高等问题, 文中提出了一种基于 RS-Conv 的多尺度神经网络LiDAR点云断裂带提取方法, 以便更好地解决复杂地形区域的断裂带自动提取问题。该方法首先构建不同空间尺度的邻域点集, 从而更全面地考察点云的局部几何结构特征。考虑到RS-Conv算子能够很好地表征中心点与邻域点的空间关系, 文中以RS-Conv算子作为卷积模块构建了多尺度神经网络模型, 以提取出LiDAR点云不同尺度的深层次特征, 对其进行堆叠并输入到全连接层, 以完成对断裂带点的提取。最后, 在ISPRS点云数据集、川滇点云数据集和鲜水河数据集上对文中所述方法与张量分解方法和Deep Neural Networks(DNN)方法进行了对比实验, 结果表明, 文中方法的分类精度最高, 分类总误差最低仅为0.3%, 较其他方法降低了0.91%~2.79%, 证实了该方法在点云断裂带提取方面的优越性。

关键词: LiDAR点云, 多尺度邻域点集, 深度学习, 断裂带提取

SONG Dong-mei, WANG Hao, FENG Jia-xing, SHAN Xin-jian, WANG Bin. A FRACTURE ZONE EXTRACTION METHOD FOR LIDAR POINT CLOUD BASED ON MULTI-SCALE NEURAL NETWORK WITH RS-CONV[J]. SEISMOLOGY AND GEOLOGY, 2024, 46(3): 739-755.

宋冬梅, 王浩, 冯家兴, 单新建, 王斌. 基于RS-Conv的多尺度神经网络LiDAR点云断裂带提取方法[J]. 地震地质, 2024, 46(3): 739-755.

Figures/Tables 18

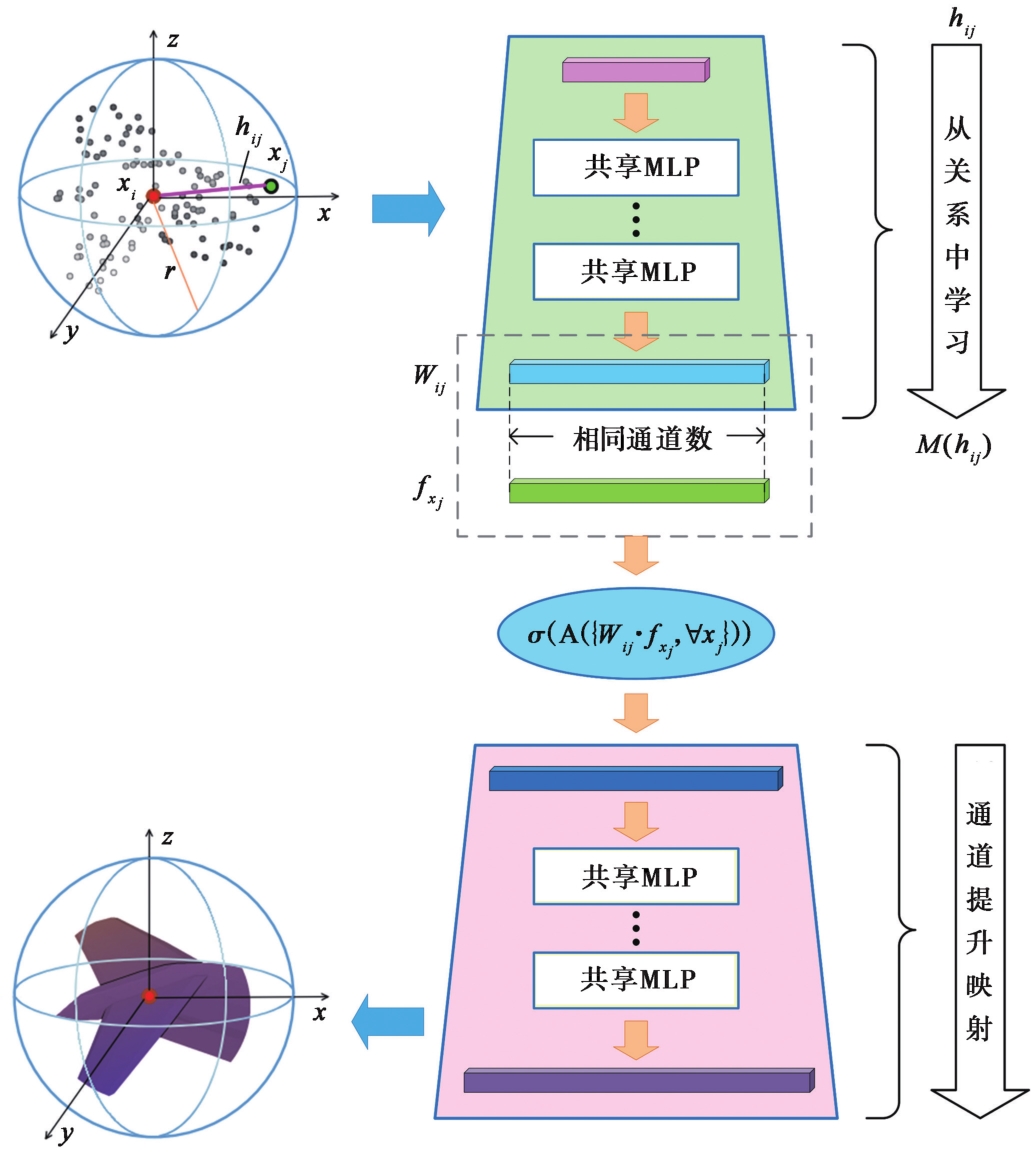

Fig. 1 Schematic diagram of RS-Conv operator framework.

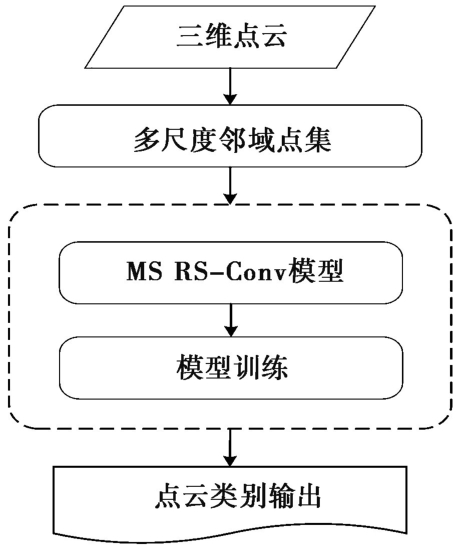

Fig. 2 Flowchart of LiDAR point cloud fracture zone extraction method.

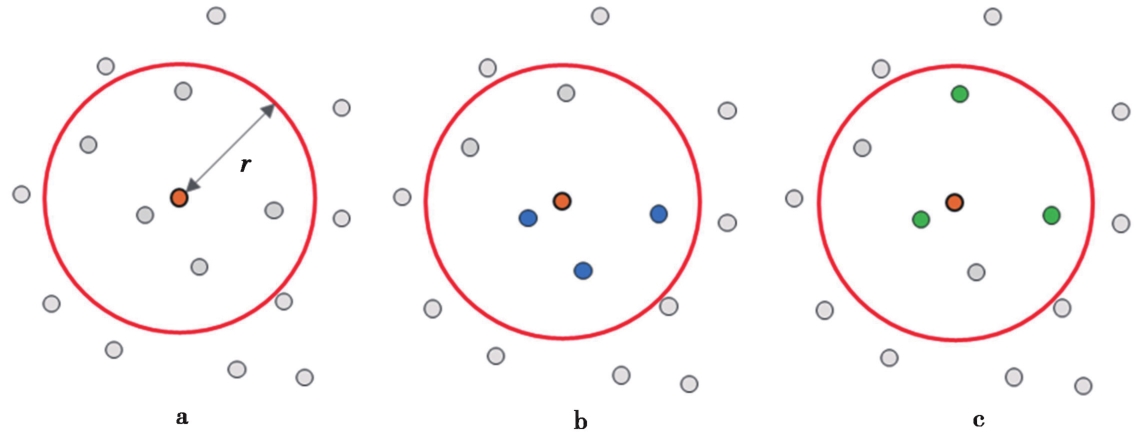

Fig. 3 Two-dimensional schematic diagram of the neighborhood search.

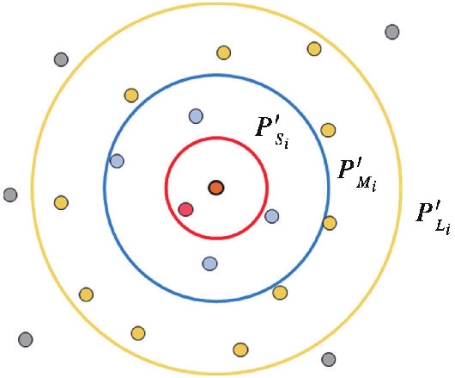

Fig. 4 Two-dimensional schematic diagram of multi-scale neighborhood search.

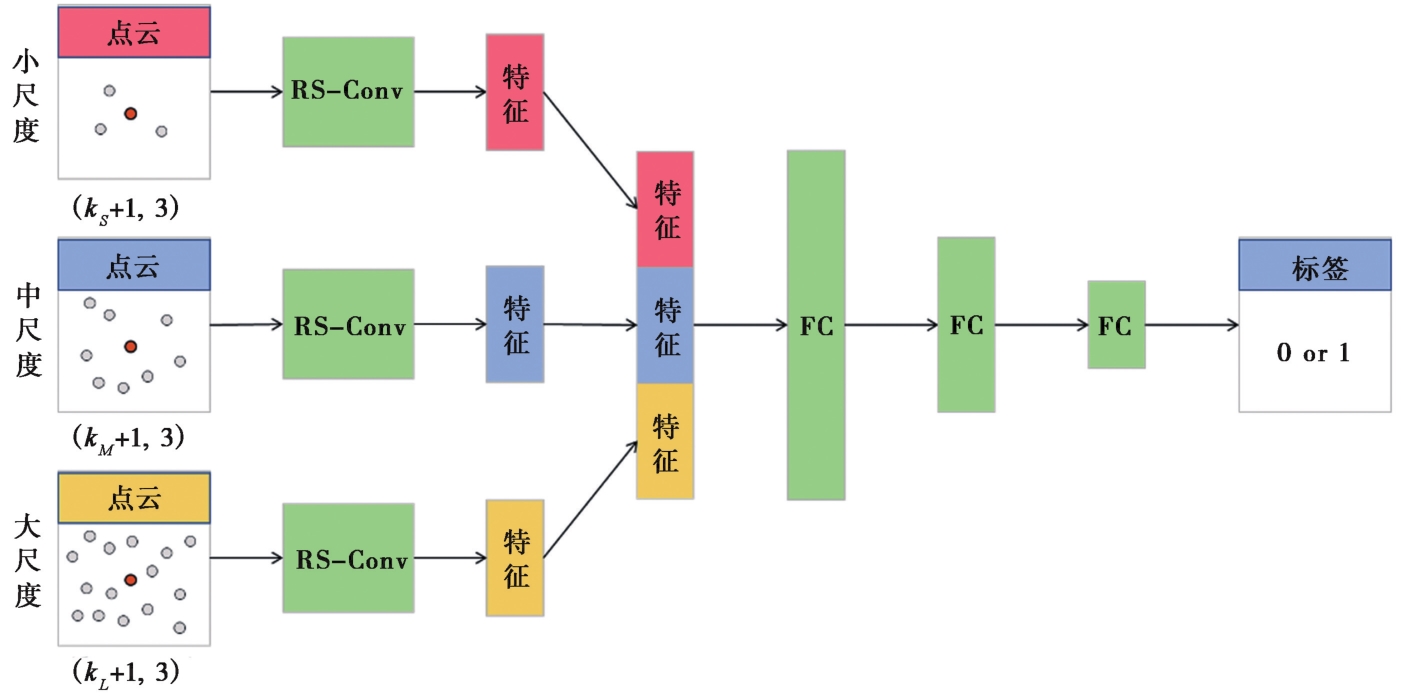

Fig. 5 Schematic diagram of MS RS-Conv point cloud fracture zone extraction framework.

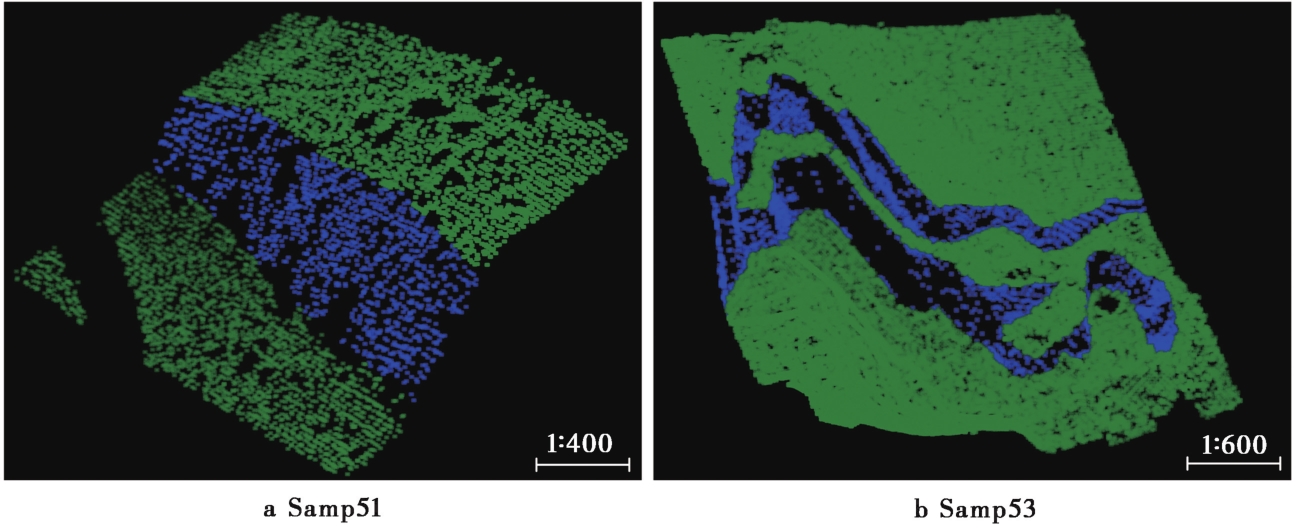

Fig. 6 Sample display diagrams of ISPRS point cloud dataset.

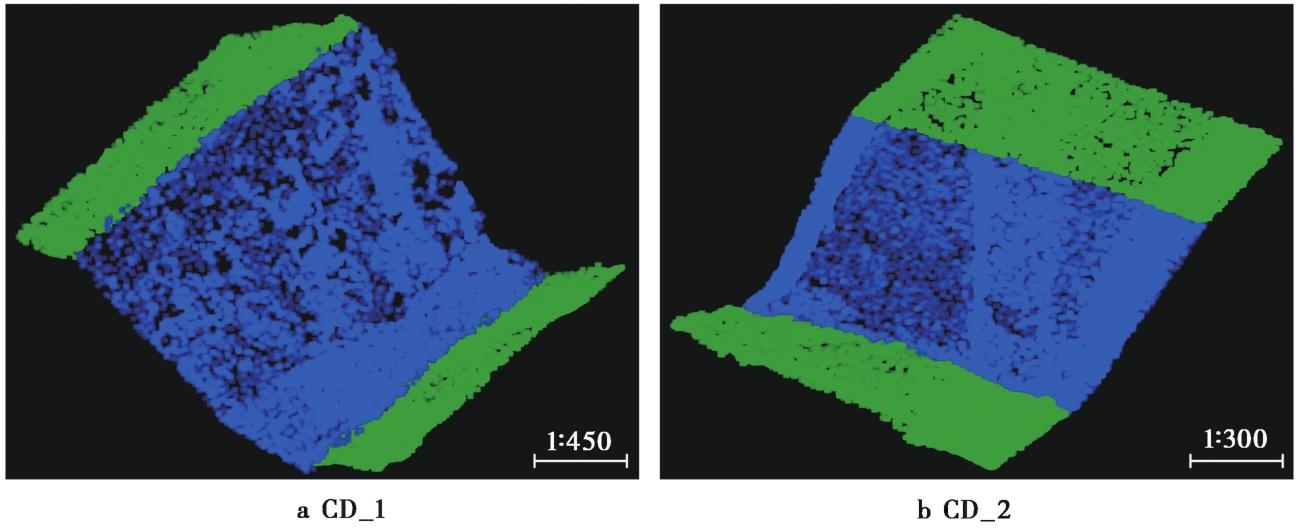

Fig. 7 Sample display diagrams of Chuandian point cloud dataset.

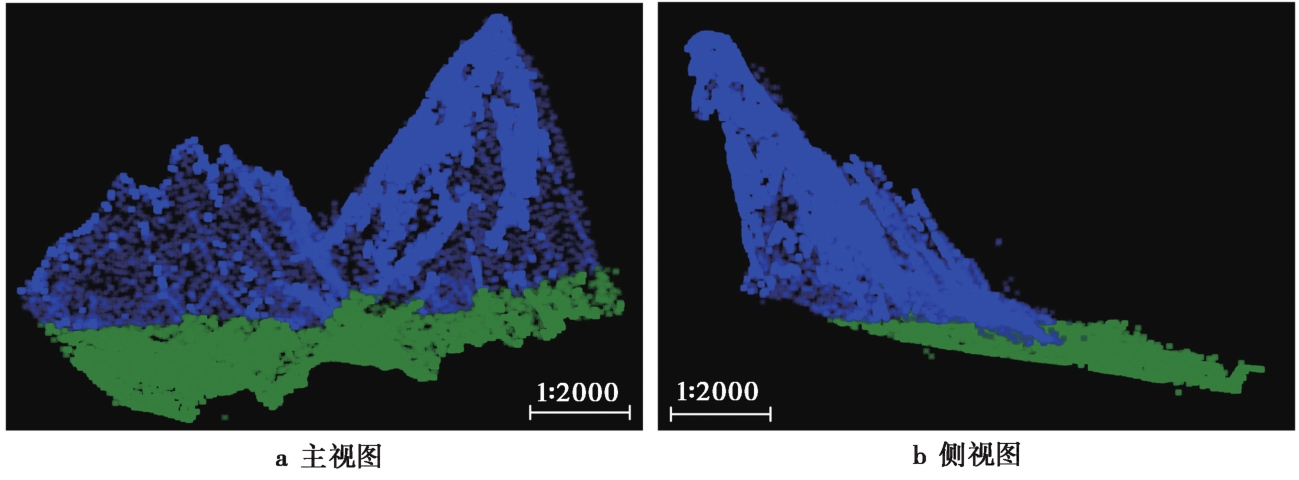

Fig. 8 Sample display diagrams of Xianshuihe point cloud dataset.

Table1 The confusion matrix of classification results and error calculation method

分类结果			预测
		断裂带点	非断裂带点
真值	断裂带点	a	b
	非断裂带点	c	d
Ⅰ类误差		c/(c+d)
Ⅱ类误差		b/(a+b)
总误差		(b+c)/(a+b+c+d)

Table2 Results of fracture zone points extraction based on different search strategies and the number of neighborhood points

模型	邻域点搜索策略	邻域点个数	总误差/%	提取精度/%
MS RS-Conv	kNN	64、128、256	1.27	98.73
		64、128、512	0.52	99.48
		64、256、1024	1.24	98.76
	RPIB	64、128、256	1.46	98.54
		64、128、512	0.99	99.01
		64、256、1024	1.51	98.49

Table3 Performance comparison of three fracture zone extraction methods on ISPRS dataset

数据集	方法	Ⅰ类误差/%	Ⅱ类误差/%	总误差/%	提取精度/%
Samp51	张量分解	1.22	9.31	2.82	97.18
	DNN	0.46	4.95	1.35	98.65
	MS RS-Conv	0.41	2.56	0.86	99.14
Samp53	张量分解	2.43	17.37	3.83	96.17
	DNN	1.07	11.39	2.03	97.97
	MS RS-Conv	0.19	10.27	1.04	98.96

Fig. 9 The results of three fracture zone extraction methods on Samp51.

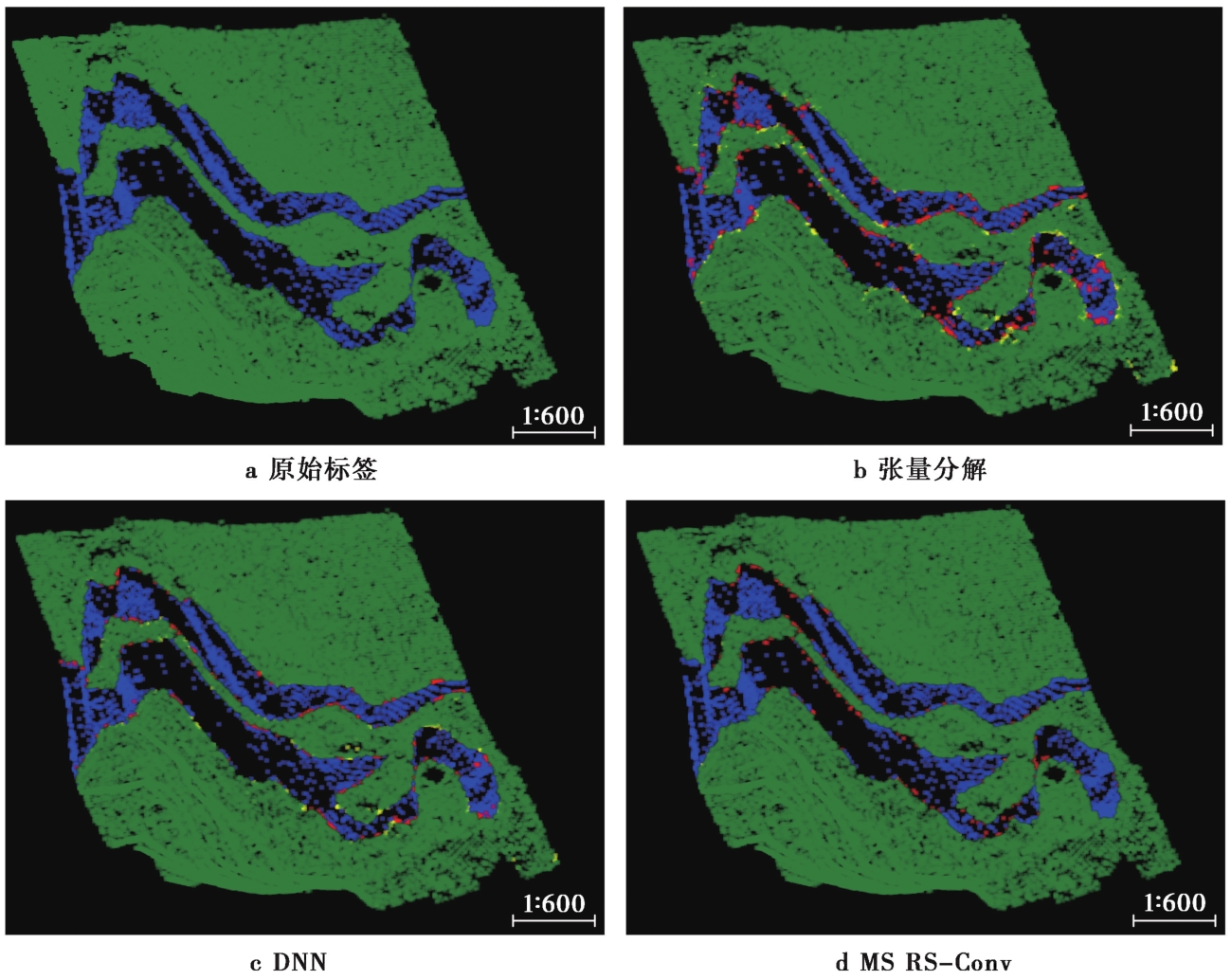

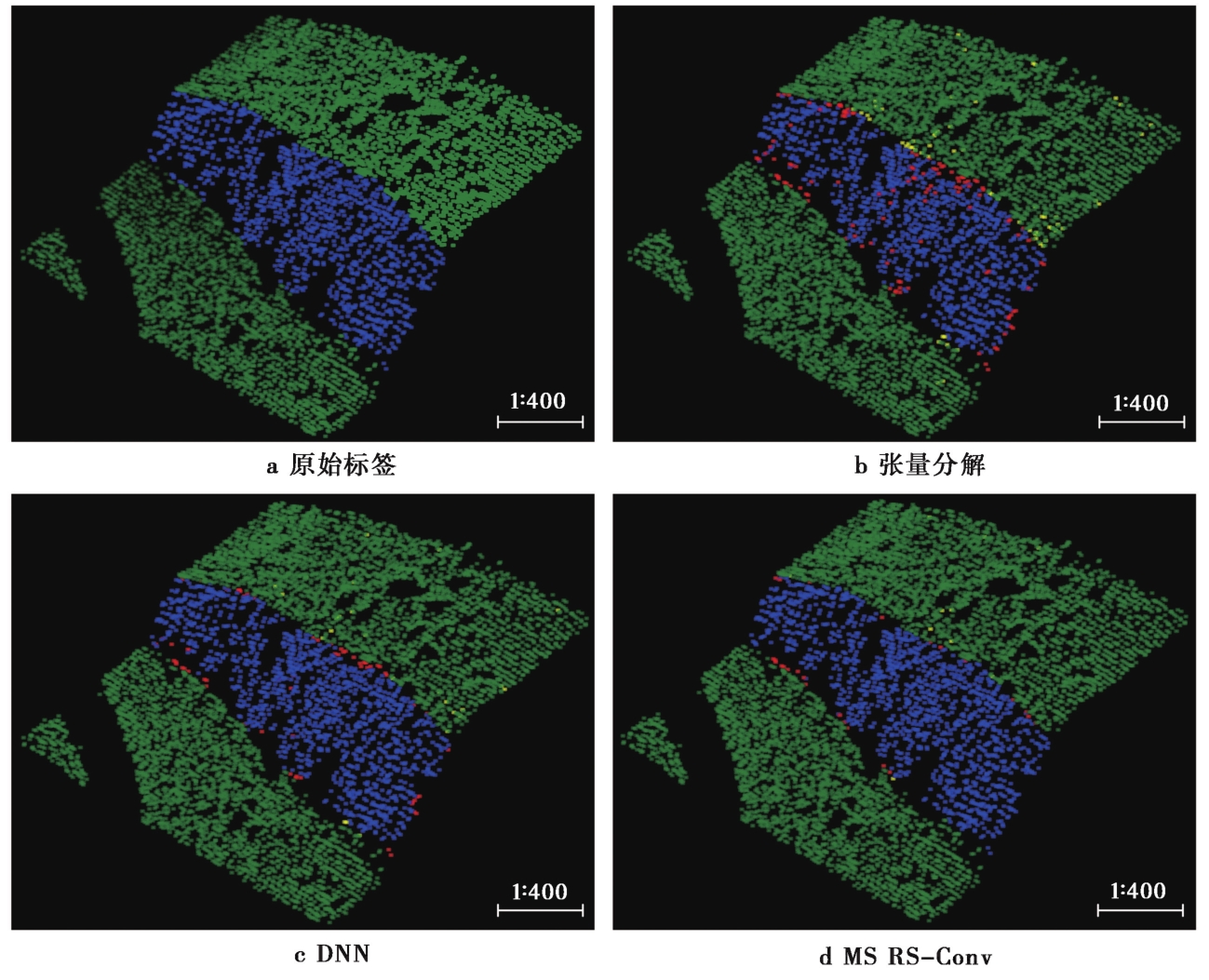

Fig. 10 The results of three fracture zone extraction methods on Samp53.

Table4 Performance comparison of three fracture zone extraction methods on Chuandian dataset

数据集	方法	Ⅰ类误差/%	Ⅱ类误差/%	总误差/%	提取精度/%
CD_1	张量分解	1.15	1.47	1.32	98.68
	DNN	0.77	0.97	0.88	99.12
	MS RS-Conv	0.29	0.50	0.41	99.59
CD_2	张量分解	1.39	1.31	1.36	98.64
	DNN	0.63	2.01	1.28	98.72
	MS RS-Conv	0.21	0.52	0.36	99.64

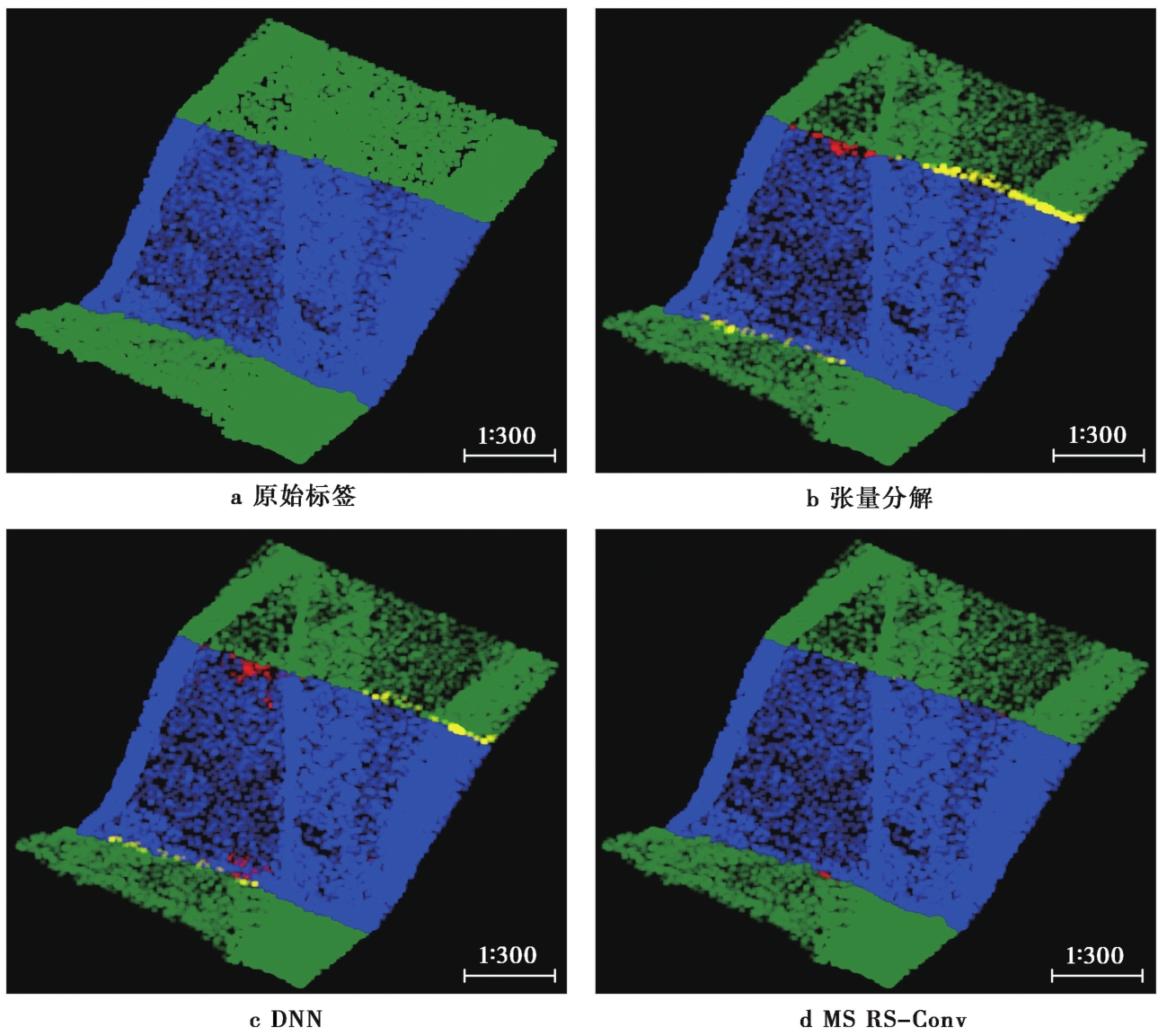

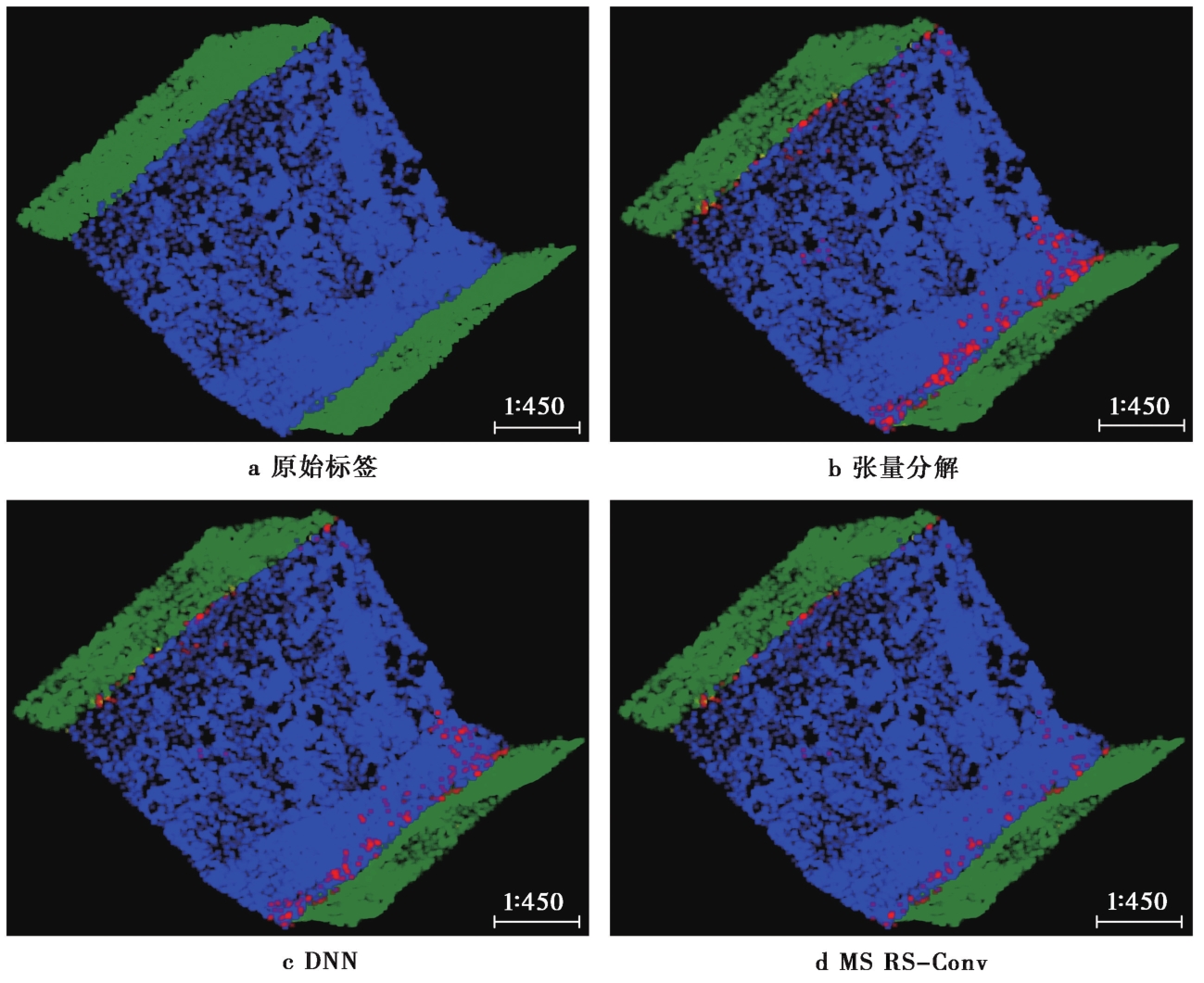

Fig. 11 The results of three fracture zone extraction methods on CD_1.

Fig. 12 The results of three fracture zone extraction methods on CD_2.

Table5 Performance comparison of three fracture zone extraction methods on Xianshuihe dataset

数据集	方法	Ⅰ类误差/%	Ⅱ类误差/%	总误差/%	提取精度/%
鲜水河点云断裂带	张量分解	7.74	1.07	2.13	97.87
	DNN	5.11	0.91	1.58	98.42
	MS RS-Conv	1.19	0.13	0.30	99.70

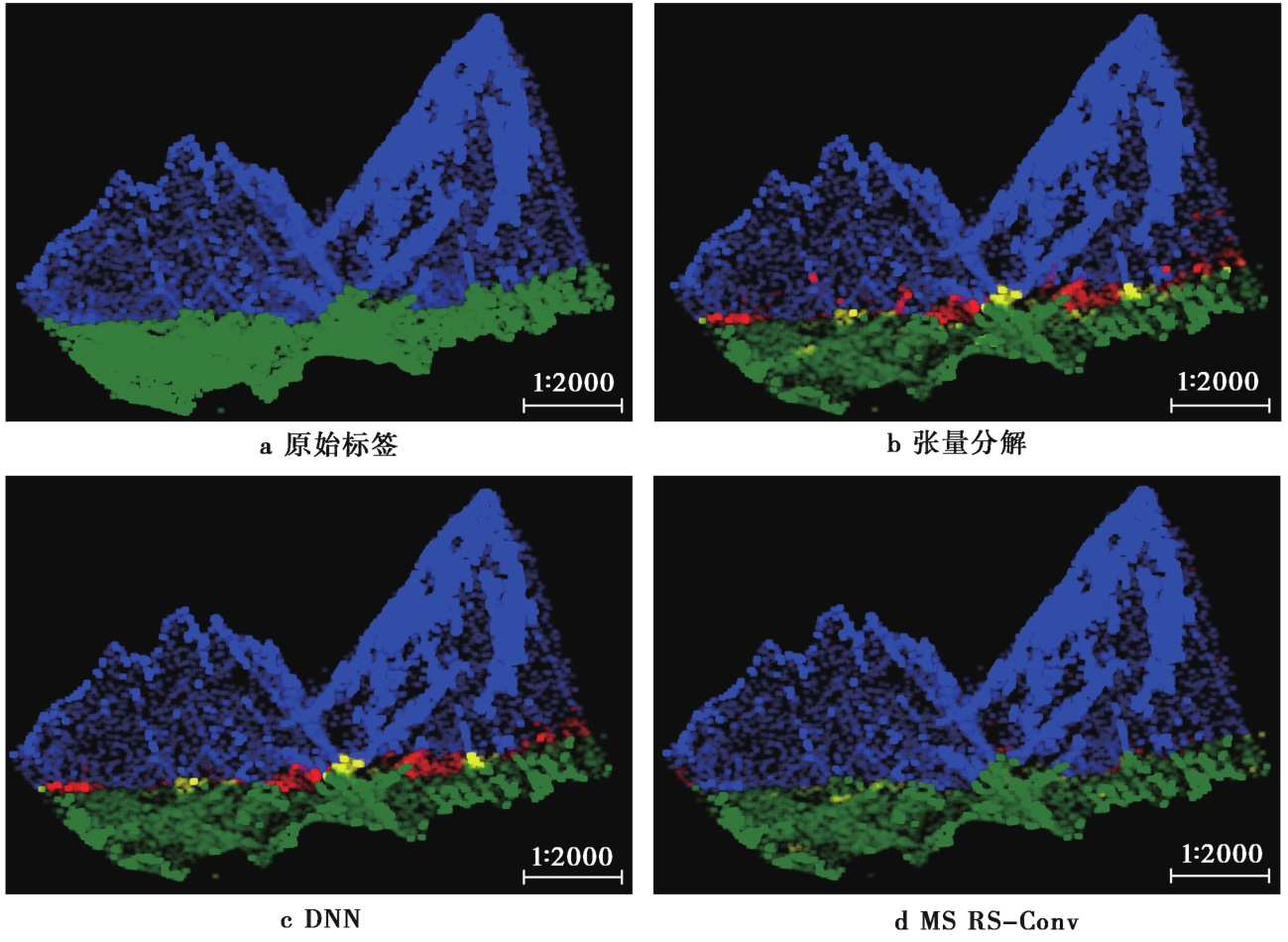

Fig. 13 The results of three fracture zone extraction methods on Xianshuihe fracture zone.
