龙门山断裂带映秀-北川断裂白沙河段滑动速率

doi:10.3969/j.issn.0253-4967.2024.06.005

摘要/Abstract

摘要：

龙门山断裂带是青藏高原块体和华南块体的重要边界断裂带, 是一条重要的地震活动构造带。几何上自西向东可分为后山断裂、中央断裂、前山断裂和前陆盆地(成都平原)变形带。中央断裂带是龙门山断裂带的主干断裂, 映秀-北川断裂是中央断裂带中段活动最强烈的一支断裂。前人对龙门山断裂带映秀-北川断裂滑动速率进行了部分研究, 但结果差异很大, 范围从0.07mm/a到1.1mm/a不等。断层滑动速率是分析断层活动特征、研究区域运动学和动力学机制的重要依据。文中依据遥感精细解译和野外调查资料, 通过10个阶地横剖面及阶地年龄对龙门山断裂带映秀-北川断裂白沙河段的滑动速率进行约束, 得到映秀-北川断裂白沙河段晚更新世以来的垂直滑动速率为(0.10±0.02)~(0.30±0.05)mm/a, 平均滑动速率为0.19mm/a。该结果可为理解汶川地震的发震构造、龙门山断裂带的整体活动特征及评价龙门山断裂带的长期地震危险性提供基础资料。

关键词: 龙门山断裂带, 映秀-北川断裂, 白沙河, 滑动速率

Abstract:

The tectonic belt stretches approximately 400km from Lushan County to Wenchuan County in an east-west direction. The Longmenshan fault zone can be geometrically divided into several sections, including the Houshan Fault, the Central Fault, the Qianshan Fault, and the Foreland Basin(Chengdu Plain)Deformation Zone. The Central Fault is the main segment of the active tectonic belt in the Longmenshan region, and the Yingxiu-Beichuan Fault is one of the most active segments within this central section. The Yingxiu-Beichuan Fault has experienced numerous moderate and strong earthquakes throughout its history, including the Wenchuan earthquake 2008. The 2008 Wenchuan earthquake was ahigh destructive natural disaster that profoundly impacted the Chinese mainland, leading to significant economic losses and casualties. This earthquake caused extensive building collapses, leading to the loss of tens of thousands of lives, and triggered severe secondary geological disasters such as landslides, rockfalls, and mudflows, severely affecting the normal operation of transportation and communication infrastructure. The Yingxiu-Beichuan Fault was one of the key surface rupture zones during this earthquake. However, there is still some uncertainty about the slip rate of this fault.

The Baisha River segment examined in this paper is located in the southern part of the Yingxiu-Beichuan Fault, measuring approximately 14km long. This area contains 14 fractures of varying lengths and complex geometric structures, forming a fracture zone that reaches a maximum width of nearly 300m. The overall orientation of the rupture zone is about 50 degrees; however, the orientation of each small secondary rupture varies, with differences ranging from 0 to 90 degrees. The coseismic displacement along the Baisha River section displays complexity and diversity. The thrust movement primarily occurs on the northern and western walls, with some local thrust faults. Additionally, the strike-slip motion is predominantly right-lateral, exhibiting a maximum horizontal displacement of approximately 4.8m, although some local areas show left-lateral displacement.

Previous studies have employed various techniques, such as geology and geodesy, resulting in a wide range of slip rate estimates from 0.07mm/a to 1.1mm/a. The slip rate of fault is a crucial factor for analyzing the characteristics of fault activity and for studying regional kinematics and dynamic mechanisms. According to river terrace longitudinal profiles estimates, the fault has a vertical slip rate of about 0.3mm/a to 0.6mm/a. Estimates based on displaced landforms indicate a vertical slip rate between 0.07mm/a and 1.1mm/a. According to GPS observations, the horizontal slip rate in the Longmenshan fault zone has a limit of 2mm/a, but the slip rate of individual faults is lower than 0.7mm/a.

In recent years, remote sensing techniques have been extensively utilized to study surface rupture zones, particularly during significant seismic events. This paper primarily employs aerial and QuickBird satellite images captured before and after the earthquake. The resolution of the aerial images is nearly 1m, while the QuickBird satellite images have a resolution of 0.6m, both of which allow for precise interpretation of tectonic landforms. River terraces consist of terraced units, including terraced surfaces, steep terraces, terrace fronts, and terrace backs. As geomorphic markers that are relatively easy to identify and measure, river terraces are among the most essential geomorphic units in the quantitative study of active tectonics. They also serve as crucial geological relics documenting Quaternary tectonic movements and climate changes. By examining river terraces and their deformations, researchers can discuss the timing and scale of tectonic activity, making this a long-term area of research.

This paper focuses on the Baisha River section, situated in the southern part of the Yingxiu-Beichuan Fault. We employed geological and geomorphological methods along with optically stimulated luminescence dating, remote sensing interpretation, field investigations, and data analysis to assess the slip rate of the Baisha River section of the Yingxiu-Beichuan Fault within the Longmenshan fault zone. Additionally, we analyze the spatio-temporal variation characteristics of this slip rate. This study constrains the slip rate of the Baishahe segment of the Yingxiu-Beichuan Fault in the Longmenshan fault zone using 10 terrace cross-sections and terrace ages. The results indicate that the Yingxiu-Beichuan Fault Baisha River segment has a vertical slip rate since the Late Pleistocene ranges from(0.10±0.02)mm/a to(0.30±0.05)mm/a. Considering that only one event, the 2008 Wenchuan earthquake, is associated with the T1 terrace, we believe the calculated rate based on the dislocation and age of the T1 terrace may significantly deviate from reality. If we exclude the sliding rate of the T1 terrace, the vertical slip rate since the late Quaternary ranges between(0.10±0.03)mm/a and(0.30±0.05)mm/a. The linear fitting results indicate that the average vertical sliding rate since the late Quaternary is approximately 0.19mm/a.

These findings provide fundamental data for understanding the seismogenic structure of the Wenchuan earthquake and the overall characteristics of the Longmenshan fault zone, as well as for assessing its long-term seismic hazard.

Key words: Longmenshan fault zone, Yingxiu-Beichuan Fault, Baisha River segment, slip rates

花春雨, 石峰, 魏占玉. 龙门山断裂带映秀-北川断裂白沙河段滑动速率[J]. 地震地质, 2024, 46(6): 1295-1313.

HUA Chun-yu, SHI Feng, WEI Zhan-yu. STUDY ON THE SLIP RATE OF THE BAISHA RIVER SEGMENT IN THE YINGXIU-BEICHUAN FAULT IN THE LONGMENSHAN FAULT ZONE[J]. SEISMOLOGY AND GEOLOGY, 2024, 46(6): 1295-1313.

图/表 9

参考文献 70

[1]	程绍平, 邓起东, 闵伟, 等. 1998. 黄河晋陕峡谷河流阶地和鄂尔多斯高原第四纪构造运动[J]. 第四纪研究, 18(3): 238—248.
	CHENG Shao-ping, DENG Qi-dong, MIN Wei, et al. 1998. Yellow river and Quaternary tectonic movements of the Ordos plateau[J]Quaternary Sciences, 18(3): 238—248(in Chinese).
[2]	邓起东. 2008. 关于四川汶川8.0级地震的思考[J]. 地震地质, 30(4): 811—827.
	DENG Qi-dong. 2008. Some thoughts on the M_S8.0 Wenchuan, Sichuan earthquake[J]. Seismology and Geology, 30(4): 811—827(in Chinese).
[3]	邓起东, 陈社发, 赵小麟. 1994. 龙门山及其邻区的构造和地震活动及动力学[J]. 地震地质, 16(4): 389—403.
	DENG Qi-dong, CHEN She-fa, ZHAO Xiao-lin. 1994. Tectonics, scismisity and dynamics of Longmenshan mountains and its adjacent regions[J]. Seismology and Geology, 16(4): 389—403(in Chinese).
[4]	邓起东, 王克鲁, 汪一鹏, 等. 1973. 山西隆起区断陷地震带地震地质条件及地震发展趋势概述[J]. 地质科学, 8(1): 37—47.
	DENG Qi-dong, WANG Ke-lu, WANG Yi-peng, et al. 1973. Overview of seismic geological conditions and development trend of fault depression seismic belt in Shanxi uplift area[J]. Chinese Journal of Geology, 8(1): 37—47(in Chinese).
[5]	丁国瑜, 蔡文伯, 于品清, 等. 1991. 中国岩石圈动力学概论[M]. 北京: 地震出版社.
	DING Guo-yu, CAI Wen-bo, YU Pin-qing, et al. 1991. An Introduction to the Dynamics of the Lithosphere in China[M]. Earthquake Press, Beijing(in Chinese).
[6]	付碧宏, 时丕龙, 张之武. 2008. 四川汶川 M_S8.0 大地震地表破裂带的遥感影像解析[J]. 地质学报, 82(12): 1679—1687.
	FU Bi-hong, SHI Pi-long, ZHANG Zhi-wu. 2008. Spatial characteristics of the surface rupture produced by the M_S8.0 Wenchuan earthquake using high-resolution remote sensing imagery[J]. Acta Geologica Sinica, 82(12): 1679—1687(in Chinese).
[7]	何宏林. 2011. 活动断层填图中的航片解译问题[J]. 地震地质, 33(4): 938—950.
	HE Hong-lin. 2011. Some problems of aerial photo interpretation in active fault mapping[J]. Seismology and Geology, 33(4): 938—950(in Chinese). DOI
[8]	何宏林, 孙昭民, 魏占玉, 等. 2008. 汶川 M_S8.0 地震地表破裂带白沙河段破裂及其位移特征[J]. 地震地质, 30(3): 658—673.
	HE Hong-lin, SUN Zhao-min, WEI Zhan-yu, et al. 2008. Rupture of the M_S8.0 Wenchuan earthquake along Baishahe River[J]. Seismology and Geology, 30(3): 658—673(in Chinese).
[9]	贾东, 陈竹新, 贾承造, 等. 2003. 龙门山前陆褶皱冲断带构造解析与川西前陆盆地的发育[J]. 高校地质学报, 9(3): 402—410.
	JIA Dong, CHEN Zhu-xin, JIA Cheng-zao, et al. 2003. Structural features of the Longmen Shan fold and thrust belt and development of the western Sichuan foreland basin[J]. Geological Journal of China Universities, 9(3): 402—410(in Chinese).
[10]	贾秋鹏, 贾东, 朱艾斓, 等. 2007. 青藏高原东缘龙门山冲断带与四川盆地的现今构造表现: 数字地形和地震活动证据[J]. 地质科学, 42(1): 31—44.
	JIA Qiu-peng, JIA Dong, ZHU Ai-lan, et al. 2007. Active tectonics in the Longmen thrust belt to the eastern Qinghai-Tibetan plateau and Sichuan Basin: Evidence from Topography and Seismicity[J]. Chinese Journal of Geology, 42(1): 31—44(in Chinese).
[11]	李吉均, 方小敏, 马海洲, 等. 1996. 晚新生代黄河上游地貌演化与青藏高原隆起[J]. 中国科学(D 辑), 26(4): 316—322.
	LI Ji-jun, FANG Xiao-min, MA Hai-zhou, et al. 1996. Geomorphic evolution of the upper reaches of the Yellow River and the uplift of the Tibetan plateau in the Late Cenozoic[J]. Science in China(Ser D), 26(4): 316—322(in Chinese).
[12]	李明. 2019. 龙门山中北段北川-映秀断裂晚第四纪活动性研究[D]. 北京. 中国地震局地壳应力研究所.
	LI Ming. 2019. Study on late Quaternary activity of the Beichuan-Yingxiu fault in the north central section of Longmen Mountains[D]. The Institute of Crustal Dynamics, China Earthquake Administration, Beijing(in Chinese).
[13]	李勇, 周荣军, Densmore A L, 等. 2006a. 青藏高原东缘大陆动力学过程与地质响应[M]. 北京: 地质出版社.
	LI Yong, ZHOU Rong-jun, Densmore A L, et al. 2006a. Continental Dynamic Process and Geological Response in the Eastern Margin of the Qinghai-Tibet Plateau[M]. Geology Press, Beijing(in Chinese).
[14]	李勇, 周荣军, Densmore A L, 等. 2006b. 青藏高原东缘龙门山晚新生代走滑-逆冲作用的地貌标志[J]. 第四纪研究, 26(1): 40—51.
	LI Yong, ZHOU Rong-jun, Densmore A L, et al. 2006b. Geomorphic evidence for the late Cenozoic strike-slipping and thrusting in Longmen mountain at the eastern margin of the Tibetan plateau[J]. Quaternary Sciences, 26(1): 40—51(in Chinese).
[15]	刘静, 孙杰, 张智慧, 等. 2010. 汶川地震映秀-北川地表破裂带虹口乡段精细填图, 位移特征和地震构造分析[J]. 第四纪研究, 30(1): 1—29.
	LIU Jing, SUN Jie, ZHANG Zhi-hui, et al. 2010. Detailed mapping of surface rupture of the Wenchuan M_S8.0 earthquake near Hongkou and seismotectonic implications[J]. Quaternary Sciences, 30(1): 1—29(in Chinese).
[16]	吕红华, 李有利, 南峰, 等. 2008. 天山北麓河流阶地序列及形成年代[J]. 地理学报, 63(1): 65—74.
	LÜ Hong-hua, LI You-li, NAN Feng, et al. 2008. River terrace sequence and its formation age at the northern foot of Tianshan Mountains[J]. Acta Geographica Sinica, 63(1): 65—74(in Chinese).
[17]	马保起, 李克, 吴卫民, 等. 1999. 大青山河谷地貌特征及新构造意义[J]. 地理学报, 54(4): 327—334. DOI
	MA Bao-qi, LI Ke, WU Wei-min, et al. 1999. Features and neotectonic significance of river valley landforms in Mt. Daqingshan[J]. Acta Geographica Sinica, 54(4): 327—334(in Chinese). DOI
[18]	马保起, 苏刚, 侯治华, 等. 2005. 利用岷江阶地的变形估算龙门山断裂带中段晚第四纪滑动速率[J]. 地震地质, 27(2): 234—242.
	MA Bao-qi, SU Gang, HOU Zhi-hua, et al. 2005. Late Quaternary slip rate in the central part of the Longmenshan fault zone from terrace deformation along the Minjiang river[J]. Seismology and Geology, 27(2): 234—242(in Chinese).
[19]	冉勇康, 王虎, 陈立春, 等. 2018. 龙门山断裂带晚第四纪的大地震活动——来自古地震研究的资料[J]. 地球物理学报, 61(5): 1938—1948. DOI
	RAN Yong-kang, WANG Hu, CHEN Li-chun, et al. 2018. Late-Quaternary fault activity of the Longmen Shan fault zone: Evidence from paleoseismic trenching[J]. Chinese Journal of Geophysics, 61(5): 1938—1948(in Chinese).
[20]	石峰, 何宏林, 魏占玉. 2009. 汶川地震破裂带白沙河段同震水平缩短量的估算[J]. 第四纪研究, 29(3): 546—553.
	SHI Feng, HE Hong-lin, WEI Zhan-yu. 2009. Co-seismic horizontal shortening on Baishahe segment of Wenchuan earthquake rupture zone[J]. Quaternary Sciences, 29(3): 546—553(in Chinese).
[21]	谭利华, 杨景春, 段烽军. 1998. 河西走廊新生代构造运动的阶段划分[J]. 北京大学学报(自然科学版), 34(4): 523—532.
	TAN Li-hua, YANG Jing-chun, DUAN Feng-jun. 1998. Stages of Cenozoic tectonic movement in Hexi Corridor, Gansu Province[J]. Acta Scientiarum Naturalium Universitatis Pekinensis, 34(4): 523—532(in Chinese).
[22]	唐荣昌, 韩渭宾. 1993. 四川活动断裂与地震[M]. 北京: 地震出版社.
	TANG Rong-chang, HAN Wei-bin. 1993. Active Faults and Earthquakes in Sichuan[M]. Seismological Press, Beijing(in Chinese).
[23]	田勤俭, 郝凯, 王林, 等. 2009. 汶川8.0级地震发震断层逆冲活动的地震地貌与古地震初步研究[J]. 第四纪研究, 29(3): 464—471.
	TIAN Qin-jian, HAO Kai, WANG Lin, et al. 2009. Preliminary study of paleoearthquakes based on earthquake terrace and offset terrace investigation after Wenchuan M_S8.0 earthquake[J]. Quaternary Sciences, 29(3): 464—471(in Chinese).
[24]	王波. 2016. 映秀-北川断裂带北段断裂岩的岩性、结构、构造特征研究[D]. 成都: 成都理工大学.
	WANG Bo. 2016. Study on lithology, structure and structural characteristics of fault rocks in the northern section of Yingxiu-Beichuan fault belt[D]. Chengdu University of Technology, Chengdu(in Chinese).
[25]	邢成起, 丁国瑜, 卢演俦, 等. 2001. 黄河中游河流阶地的对比及阶地系列形成中构造作用的多层次性分析[J]. 中国地震, 17(2): 187—201.
	XING Cheng-li, DING Guo-yu, LU Yan-chou, et al. 2001. Comparison of river terraces in the middle reach valleys of the Yellow River and analysis on the multi-gradational features of tectonic action in the formation of terrace series[J]. Earthquake Research in China, 17(2): 187—201(in Chinese).
[26]	徐锡伟, 闻学泽, 叶建青, 等. 2008. 汶川 M_S8.0 地震地表破裂带及其发震构造[J]. 地震地质, 30(3): 597—629.
	XU Xi-wei, WEN Xue-ze, YE Jian-qing, et al. 2008. The M_S8.0 Wenchuan earthquake surface ruptures and its seismogenic structure[J]. Seismology and Geology, 30(3): 597—629(in Chinese).
[27]	徐锡伟, 张培震, 闻学泽, 等. 2005. 川西及其邻近地区活动构造基本特征与强震复发模型[J]. 地震地质, 27(3): 446—461.
	XU Xi-wei, ZHANG Pei-zhen, WEN Xue-ze, et al. 2005. Features of active tectonics and recurrence behaviors of strong earthouakes in the western Sichuan Province and its adjacent regions[J]. Seismology and Geology, 27(3): 446—461(in Chinese).
[28]	杨景春. 1983. 中国北部和东北部构造地貌发育和第四纪构造应力状态的关系[J]. 地理学报, 38(3): 218—228. DOI
	YANG Jing-chun. 1983. Relationship between morphotectonic evolution and Quaternary tectonic stress state in north and northeastern China[J]. Acta Geographica Sinica, 38(3): 218—228(in Chinese). DOI
[29]	杨景春, 郭正堂, 曹家栋. 1985. 用地貌学方法研究贺兰山山前断层全新世活动状况[J]. 地震地质, 7(4): 23—31.
	YANG Jing-chun, GUO Zheng-tang, CAO Jia-dong. 1985. Investigation on the Hoiocene activities of the Helan Mountain piedmont fault by use of geomorphological method[J]. Seismology and Geology, 7(4): 23—31(in Chinese).
[30]	杨晓平, 邓起东, 张培震, 等. 1998. 北天山地区活动逆断裂-褶皱带构造与潜在震源区估计[J]. 地震地质, 20(3): 193—200.
	YANG Xiao-ping, DENG Qi-dong, ZHANG Pei-zhen, et al. 1998. Active reverse fault fold zones and estimation of potential earthquake sources in northern Tianshan[J]. Seismology and Geology, 20(3): 193—200(in Chinese).
[31]	杨晓平, 冯希杰, 戈天勇, 等. 2008. 龙门山断裂带北段第四纪活动的地质地貌证据[J]. 地震地质, 30(3): 644—657.
	YANG Xiao-ping, FENG Xi-jie, GE Tian-yong, et al. 2008. Geological and geomorphic evidence for the Quaternary activity on the northeast segment of Longmenshan fault zone[J]. Seismology and Geology, 30(3): 644—657(in Chinese).
[32]	杨晓平, 蒋溥, 宋方敏, 等. 1999. 龙门山断裂带南段错断晚更新世以来地层的证据[J]. 地震地质, 21(4): 341—345.
	YANG Xiao-ping, JIANG Pu, SONG Fang-min, et al. 1999. The evidence of the south Longmenshan fault zone scutting late Quaternary stratum[J]. Seismology and Geology, 21(4): 341—345(in Chinese).
[33]	杨晓平, 冉勇康, 程建武, 等. 2006. 柯坪推覆构造中的几个新生褶皱带阶地变形测量与地壳缩短[J]. 中国科学(D 辑), 36(10): 905—913.
	YANG Xiao-ping, RAN Yong-kang, CHENG Jian-wu, et al. 2006. Terrace deformation measurement and crustal shortening of several new fold belts in Keping nappe structure[J]. Science in China(Ser D), 36(10): 905—913(in Chinese).
[34]	张培震, 邓起东, 杨晓平, 等. 1996. 天山的晚新生代构造变形及其地球动力学问题[J]. 中国地震, 12(2): 127—140.
	ZHANG Pei-zhen, DENG Qi-dong, YANG Xiao-ping, et al. 1996. Late Cenozoic tectonic deformation and mechanism along the Tianshan Mountain, Northwestern China[J]. Earthquake Research in China, 12(2): 127—140(in Chinese).
[35]	张培震, 邓起东, 张国民, 等. 2003. 中国大陆的强震活动与活动地块[J]. 中国科学(D 辑), 33(S1): 12—20.
	ZHANG Pei-zhen, DENG Qi-dong, ZHANG Guo-min, et al. 2003. Strong seismic activity and active tectonic blocks in mainland China[J]. Science in China(Seri D), 33(S1): 12—20(in Chinese).
[36]	张培震, 徐锡伟, 闻学泽, 等. 2008. 2008年汶川8.0级地震发震断裂的滑动速率、复发周期和构造成因[J]. 地球物理学报, 51(4): 1066—1073.
	ZHANG Pei-zhen, XU Xi-wei, WEN Xue-ze, et al. 2008. Slip rates and recurrence intervals of the Longmen Shan active fault zone, and tectonic implications for the mechanism of the May 12 Wenchuan earthquake, 2008, Sichuan, China[J]. Chinese Journal of Geophysics, 51(4): 1066—1073(in Chinese).
[37]	张伟. 2012. 映秀-北川断裂带岩性、结构、构造特征研究[D]. 成都: 成都理工大学.
	ZHANG Wei. 2012. Study on lithology, structure and structural characteristics of Yingxiu-Beichuan fault zone[D]. Chengdu University of Technology, Chengdu(in Chinese).
[38]	赵小麟, 邓起东, 陈社发. 1994. 龙门山逆断裂带中段的构造地貌学研究[J]. 地震地质, 16(4): 422—428.
	ZHAO Xiao-lin, DENG Qi-dong, CHEN She-fa. 1994. Tectonic geomorphology of the central segment of the Longmenshan thrust belt, western Sichuan, southwestern China[J]. Seismology and Geology, 16(4): 422—428(in Chinese).
[39]	郑文涛, 杨景春, 段锋军. 2000. 武威盆地晚更新世河流阶地变形与新构造活动[J]. 地震地质, 22(3): 318—328.
	ZHENG Wen-tao, YANG Jing-chun, DUAN Feng-jun. 2000. A study on the relation between deformation of river terraces and neotectonic activity for the Wuwei Basin[J]. Seismology and Geology, 22(3): 318—328(in Chinese).
[40]	周荣军, 李勇, 何玉林, 等. 2006. 青藏高原东缘活动构造[J]. 矿物岩石, 26(2): 40—51.
	ZHOU Rong-jun, LI Yong, HE Yu-lin, et al. 2006. Active tectonics along the eastern margin of the Tibetan plateau[J]. Mineralogy and Petrology, 26(2): 40—51(in Chinese).
[41]	周荣军, 蒲晓虹, 何玉林, 等. 2000. 四川岷江断裂带北段的新活动、岷山断块的隆起及其与地震活动的关系[J]. 地震地质, 22(3): 285—294.
	ZHOU Rong-jun, PU Xiao-hong, HE Yu-lin, et al. 2000. Recent activity of Minjiang fault zone, uplift of Minshan block and their relationship with seismicity of Sichuan[J]. Seismology and Geology, 22(3): 285—294(in Chinese).
[42]	Anderson R S, Repka J L, Dick G S. 1996. Explicit treatment of inheritance in dating depositional surfaces using in situ ¹⁰Be and ²⁶Al[J]. Geology, 24(1): 47—51.
[43]	Avouac J P, Tapponnier P. 1993. Kinematic model of active deformation in central Asia[J]. Geophysical Research Letters, 20(10): 895—898.
[44]	Bird P. 2007. Uncertainties in long-term geologic offset rates of faults: General principles illustrated with data from California and other western states[J]. Geosphere, 3(6): 577—595.
[45]	Burbank D W, Anderson R S. 2011. Tectonic Geomorphology[M]. John Wiley & Sons, Hoboken, USA.
[46]	Burchfiel B C, Royden L H, Van der Hilst R D, et al. 2008. A geological and geophysical context for the Wenchuan earthquake of 12 May 2008, Sichuan, People's Republic of China[J]. GSA today, 18(7): 4—11.
[47]	Burchfiel B C, Chen Z L, Liu Y P, et al. 1995. Tectonics of the Longmen Shan and adjacent regions, central China[J]. International Geology Review, 37(8): 661—735.
[48]	Cerling T E, Craig H. 1994. Geomorphology and in-situ cosmogenic isotopes[J]. Annual Review of Earth and Planetary Sciences, 22(1): 273—317.
[49]	Chen S F, Wilson C J L. 1996. Emplacement of the Longmen Shan Thrust—Nappe Belt along the eastern margin of the Tibetan plateau[J]. Journal of Structural Geology, 18(4): 413—430.
[50]	Davis K, Burbank D W, Fisher D, et al. 2005. Thrust-fault growth and segment linkage in the active Ostler fault zone, New Zealand[J]. Journal of Structural Geology, 27(8): 1528—1546.
[51]	Densmore A L, Ellis M A, Li Y, et al. 2007. Active tectonics of the Beichuan and Pengguan faults at the eastern margin of the Tibetan plateau[J]. Tectonics, 26(4): TC4005.
[52]	Densmore A L, Li Y, Richardson N J, et al. 2010. The role of late Quaternary upper-crustal faults in the 12 May 2008 Wenchuan earthquake[J]. Bulletin of the Seismological Society of America, 100(5B): 2700—2712.
[53]	Hack J T. 1973. Stream-profile analysis and stream-gradient index[J]. Journal of Research of the U.S Geological Survey, 1(4): 421—429.
[54]	Jiang X, Li Z X, Li C, et al. 2019. A gravity study of the Longmenshan fault zone: New insights into the nature and evolution of the fault zone and extrusion-style growth of the Tibetan plateau since 40Ma[J]. Tectonics, 38(1): 176—189.
[55]	Kirby E, Whipple K X. 2012. Expression of active tectonics in erosional landscapes[J]. Journal of Structural Geology, 44(11): 54—75.
[56]	Lavé J, Avouac J P. 2000. Active folding of fluvial terraces across the Siwaliks Hills, Himalayas of central Nepal[J]. Journal of Geophysical Research: Solid Earth, 105(B3): 5735—5770.
[57]	Liu Q Y, Van Der Hilst R D, Li Y, et al. 2014. Eastward expansion of the Tibetan plateau by crustal flow and strain partitioning across faults[J]. Nature Geoscience, 7(5): 361—365.
[58]	Liu-Zeng J, Wen L, Sun J, et al. 2010. Surficial slip and rupture geometry on the Beichuan fault near Hongkou during the M_W7.9 Wenchuan earthquake, China[J]. Bulletin of the Seismological Society of America, 100(5B): 2615—2650.
[59]	Liu-Zeng J, Zhang Z, Wen L, et al. 2009. Co-seismic ruptures of the 12 May 2008, M_S8.0 Wenchuan earthquake, Sichuan: East-west crustal shortening on oblique, parallel thrusts along the eastern edge of Tibet[J]. Earth and Planetary Science Letters, 286(3-4): 355—370.
[60]	Molnar P, Brown E T, Burchfiel B C, et al. 1994. Quaternary climate change and the formation of river terraces across growing anticlines on the north flank of the Tien Shan, China[J]. The Journal of Geology, 102(5): 583—602.
[61]	Nicol A, Walsh J J, Manzocchi T, et al. 2005. Displacement rates and average earthquake recurrence intervals on normal faults[J]. Journal of Structural Geology, 27(3): 541—551.
[62]	Ran Y, Chen L, Chen J, et al. 2010. Paleoseismic evidence and repeat time of large earthquakes at three sites along the Longmenshan fault zone[J]. Tectonophysics, 491(1-4): 141—153.
[63]	Ran Y K, Chen W S, Xu X W, et al. 2013. Paleoseismic events and recurrence interval along the Beichuan-Yingxiu fault of Longmenshan fault zone, Yingxiu, Sichuan, China[J]. Tectonophysics, 584: 81—90.
[64]	Royden L H, Burchfiel B C, van der Hilst R D. 2008. The geological evolution of the Tibetan plateau[J]. Science, 321(5892): 1054—1058. DOI PMID
[65]	Shen Z K, Sun J, Zhang P, et al. 2009. Slip maxima at fault junctions and rupturing of barriers during the 2008 Wenchuan earthquake[J]. Nature Geoscience, 2(10): 718—724.
[66]	Tapponnier P, Zhiqin X, Roger F, et al. 2001. Oblique stepwise rise and growth of the Tibet Plateau[J]. Science, 294(5547): 1671—1677. PMID
[67]	Wallis S, Tsujimori T, Aoya M, et al. 2003. Cenozoic and Mesozoic metamorphism in the Longmenshan orogen: Implications for geodynamic models of eastern Tibet[J]. Geology, 31(9): 745—748.
[68]	Zechar J D, Frankel K L. 2009. Incorporating and reporting uncertainties in fault slip rates[J]. Journal of Geophysical Research: Solid Earth, 114(B12): B12407.
[69]	Zhang Z, Wang Y, Chen Y, et al. 2009. Crustal structure across Longmenshan fault belt from passive source seismic profiling[J]. Geophysical Research Letters, 36(17): L17310.
[70]	Zhu S, Zhang P. 2010. Numeric modeling of the strain accumulation and release of the 2008 Wenchuan, Sichuan, China, Earthquake[J]. Bulletin of the Seismological Society of America, 100(5B): 2825—2839.

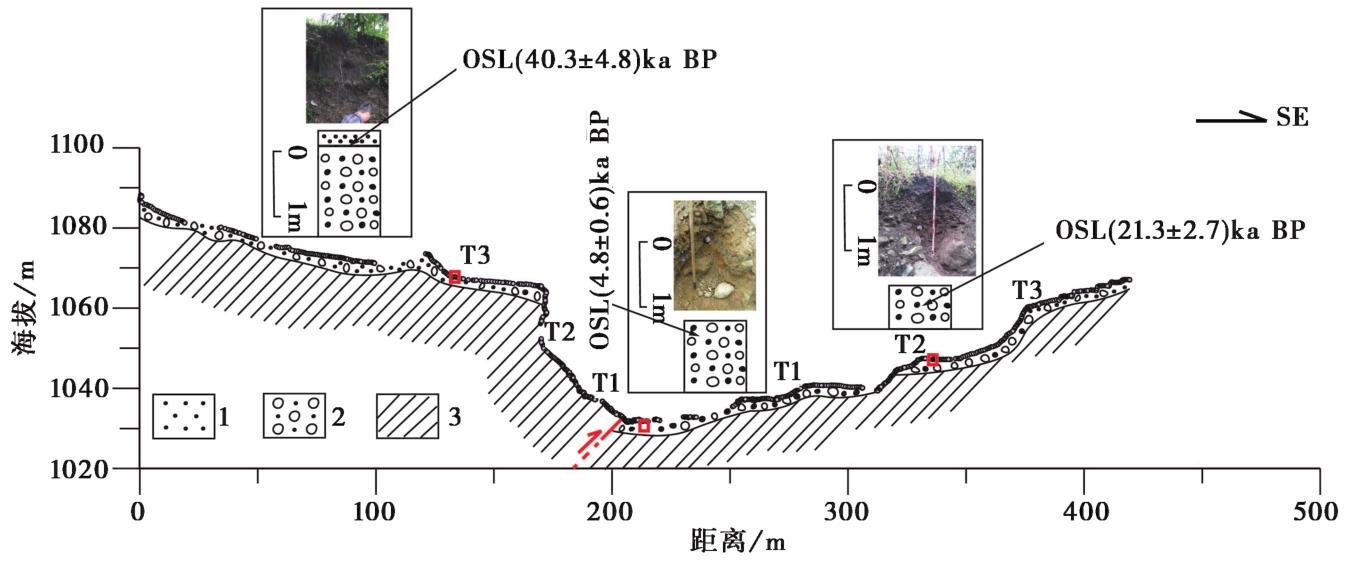

样品编号	埋深 /m	颜色	采样位置	测年手段	环境剂量率 /Gy·ka^-1	等效剂量 /Gy	测年结果
LEDL09-71	0.3	灰黑色	虹口乡八角庙T1阶地	OSL	4.22±0.42	20.20±2.50	(4.80±0.60)ka BP
LEDL09-74	0.5	黄褐色	虹口乡八角庙T3阶地	OSL	5.54±0.55	354.40±28.20	(63.90±8.20)ka BP
LEDL09-75	1.6	黑色	虹口乡八角庙T3阶地	OSL	4.82±0.48	194.00±13.10	(40.30±4.80)ka BP
LEDL09-76	1.5	黄褐色	虹口乡八角庙T2阶地	OSL	6.09±0.61	129.80±10.90	(21.30±2.70)ka BP
LEDL09-77	1.1	灰色	虹口乡八角庙T3阶地	OSL	4.01±0.40	222.00±18.70	(55.40±7.20)ka BP
LEDL09-78	0.7	黄色	虹口乡八角庙T2阶地	OSL	3.73±0.37	66.90±6.30	(17.90±2.40)ka BP
LEDL09-178	2.0	灰黄色	虹口乡高原村T2阶地	OSL	4.44±0.44	75.00±5.50	(16.90±2.10)ka BP
LEDL09-180	5.0	灰黄色	虹口乡马家咀T2阶地	OSL	3.58±0.36	59.80±6.00	(16.70±2.40)ka BP

样品编号	埋深 /m	颜色	采样位置	测年手段	环境剂量率 /Gy·ka^-1	等效剂量 /Gy	测年结果
LEDL09-71	0.3	灰黑色	虹口乡八角庙T1阶地	OSL	4.22±0.42	20.20±2.50	(4.80±0.60)ka BP
LEDL09-74	0.5	黄褐色	虹口乡八角庙T3阶地	OSL	5.54±0.55	354.40±28.20	(63.90±8.20)ka BP
LEDL09-75	1.6	黑色	虹口乡八角庙T3阶地	OSL	4.82±0.48	194.00±13.10	(40.30±4.80)ka BP
LEDL09-76	1.5	黄褐色	虹口乡八角庙T2阶地	OSL	6.09±0.61	129.80±10.90	(21.30±2.70)ka BP
LEDL09-77	1.1	灰色	虹口乡八角庙T3阶地	OSL	4.01±0.40	222.00±18.70	(55.40±7.20)ka BP
LEDL09-78	0.7	黄色	虹口乡八角庙T2阶地	OSL	3.73±0.37	66.90±6.30	(17.90±2.40)ka BP
LEDL09-178	2.0	灰黄色	虹口乡高原村T2阶地	OSL	4.44±0.44	75.00±5.50	(16.90±2.10)ka BP
LEDL09-180	5.0	灰黄色	虹口乡马家咀T2阶地	OSL	3.58±0.36	59.80±6.00	(16.70±2.40)ka BP

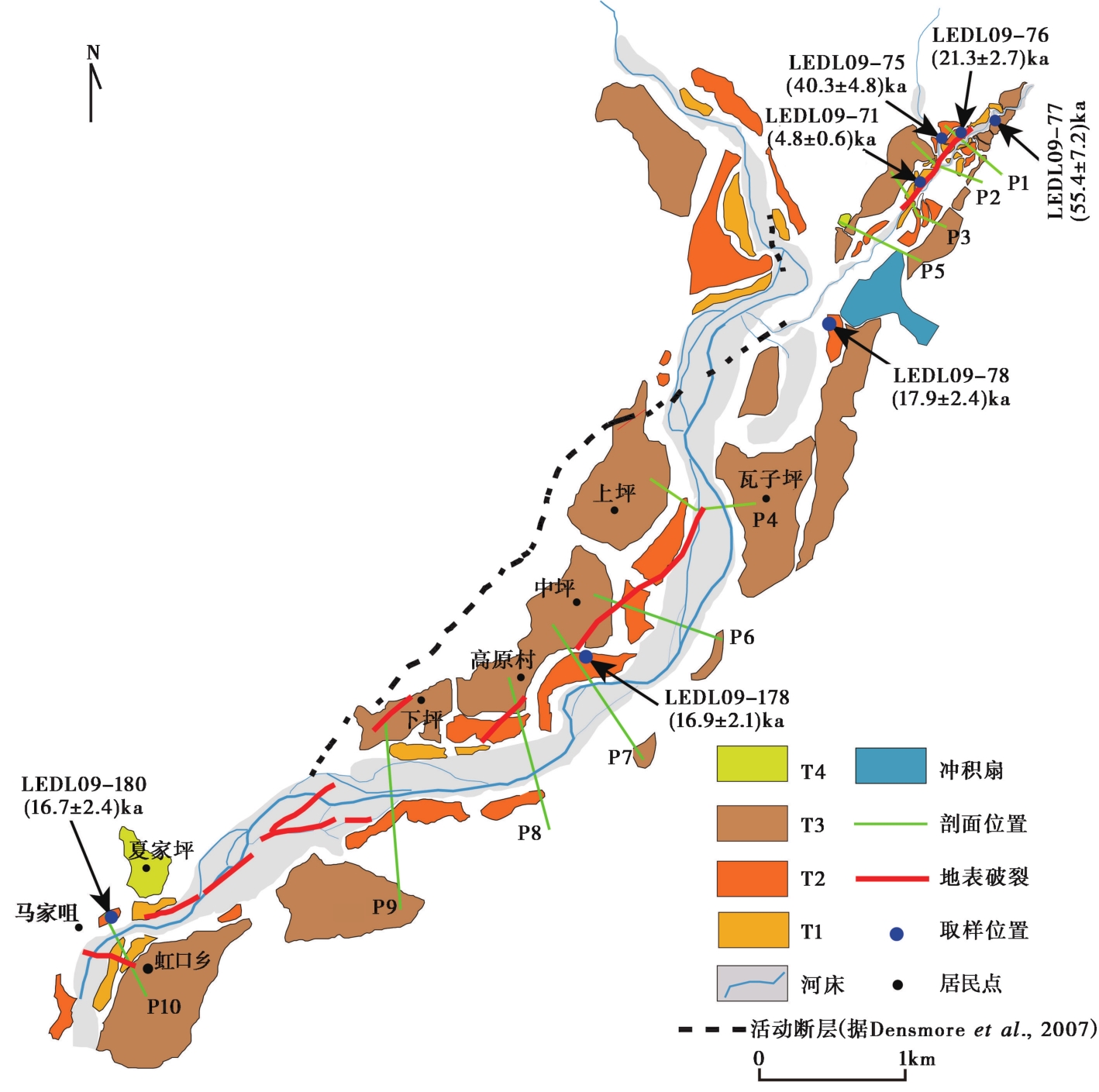

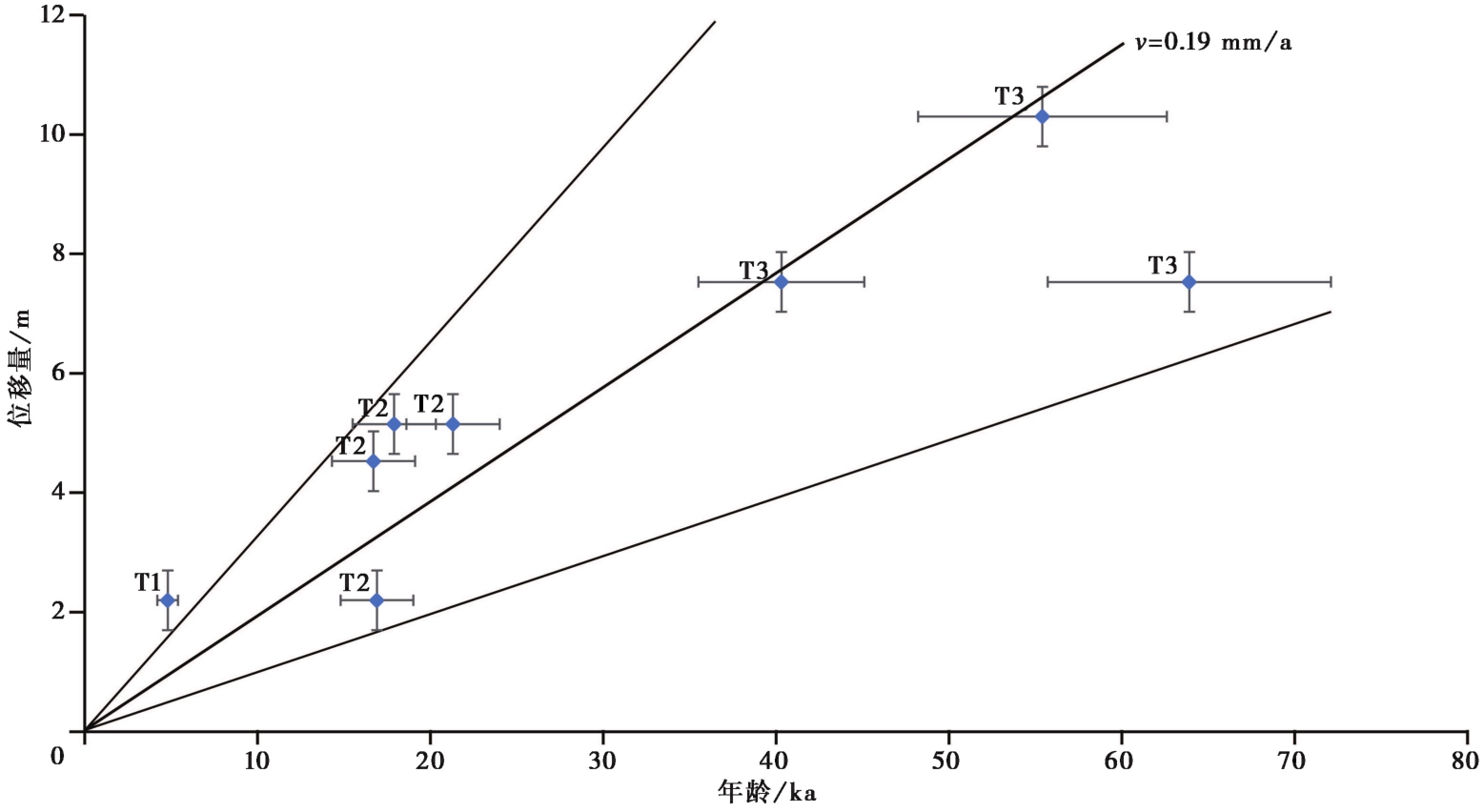

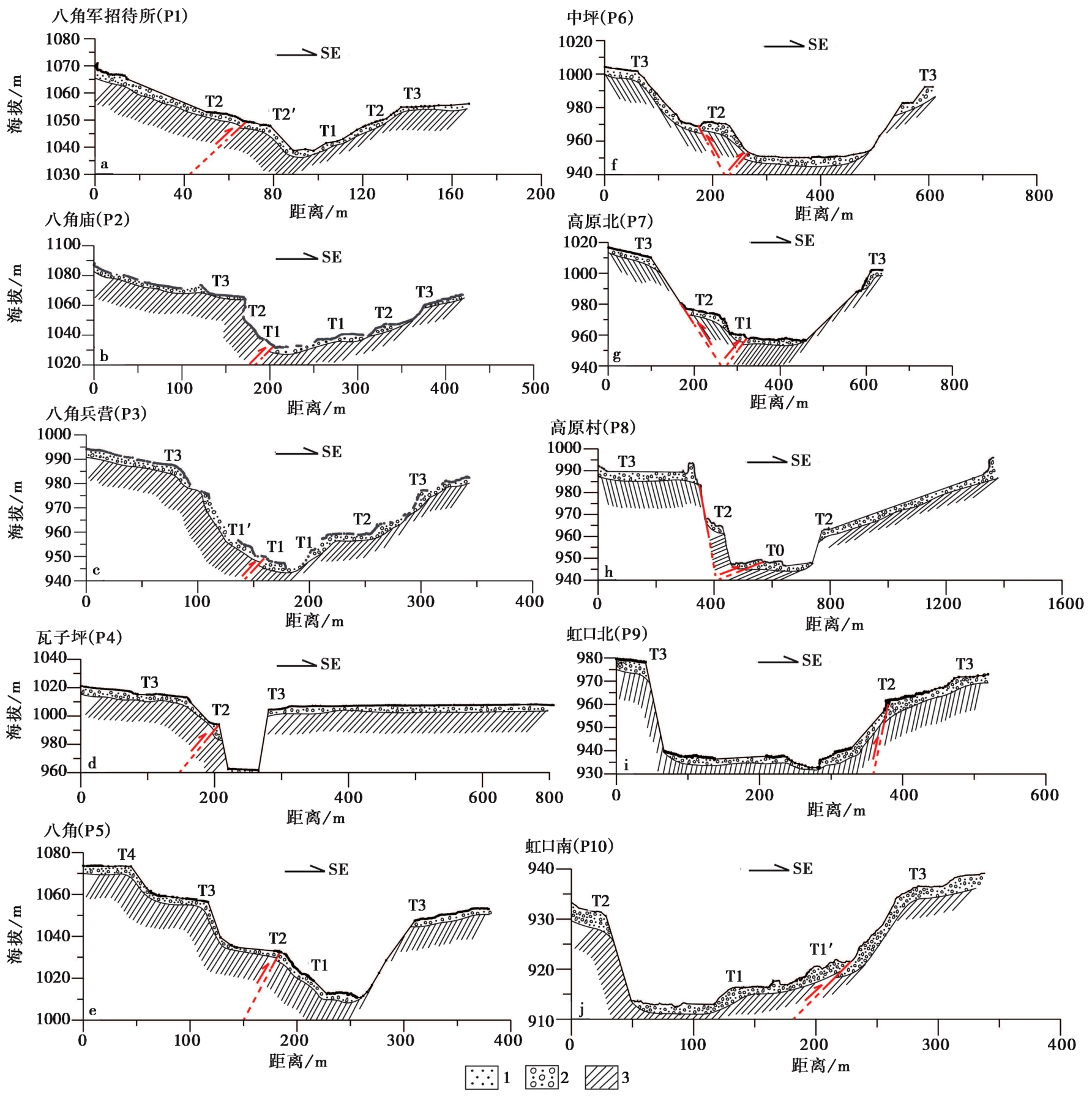

剖面编号	T1		T2		T3
剖面编号	位错/m	速率/mm·a^-1	位错/m	速率/mm·a^-1	位错/m	速率/mm·a^-1
P1			5.15±0.50	(0.24±0.04)~ (0.30±0.05)
P2	3.80±0.50	(0.79±0.14)			7.53±0.50	(0.12±0.02)~(0.19±0.03)
P3	2.20±0.50	(0.46±0.12)			10.30±0.50	(0.16±0.02)~(0.26±0.03)
P4					8.40±0.50	(0.13±0.02)~(0.21±0.03)
P5					8.32±1.50	(0.13±0.02)~(0.21±0.03)
P6					9.71±0.50	(0.15±0.02)~(0.24±0.03)
P7					8.05±0.50	(0.13±0.02)~(0.20±0.03)
P8			2.20±0.50	(0.10±0.03)~ (0.13±0.03)
P9					6.90±0.50	(0.11±0.02)~(0.17±0.02)
P10

剖面编号	T1		T2		T3
剖面编号	位错/m	速率/mm·a^-1	位错/m	速率/mm·a^-1	位错/m	速率/mm·a^-1
P1			5.15±0.50	(0.24±0.04)~ (0.30±0.05)
P2	3.80±0.50	(0.79±0.14)			7.53±0.50	(0.12±0.02)~(0.19±0.03)
P3	2.20±0.50	(0.46±0.12)			10.30±0.50	(0.16±0.02)~(0.26±0.03)
P4					8.40±0.50	(0.13±0.02)~(0.21±0.03)
P5					8.32±1.50	(0.13±0.02)~(0.21±0.03)
P6					9.71±0.50	(0.15±0.02)~(0.24±0.03)
P7					8.05±0.50	(0.13±0.02)~(0.20±0.03)
P8			2.20±0.50	(0.10±0.03)~ (0.13±0.03)
P9					6.90±0.50	(0.11±0.02)~(0.17±0.02)
P10
