吐鲁番盆地西南缘博-阿断裂晚第四纪活动特征

doi:10.3969/j.issn.0253-4967.2022.06.007

摘要/Abstract

摘要：

博-阿断裂是一条斜切天山的大型右旋走滑活动断裂, 通过影像解译和现场调查, 发现断裂在吐鲁番盆地西南山前一带形成断层陡坎、冲沟位错等与断层活动有关的地貌。其中主断裂展布于盆山交会部位, 并断错了山前冲洪积扇。无人机和差分GPS测量结果表明, 第1期冲洪积扇表面冲沟的右旋位移量达22~70m, 陡坎高达3.9~4.2m, 活动性质以右旋走滑为主, 兼具逆冲分量。位于主断裂北侧的第2期冲洪积扇表面发育2条右阶斜列的次级断裂, 在地表形成高达1.6~3.9m的陡坎。探槽揭露的剖面显示, 这2条次级断裂均倾向SW, 并表现出由南向北逆冲的趋势, 与研究区博-阿断裂的产状较为类似, 认为这2条次级逆断裂仍归属于博-阿断裂, 可能是断裂由山前向盆地内扩展而形成的。博-阿断裂主要通过NWW向右旋走滑运动的方式调节东天山内部的挤压应变, 且断裂的最新活动有自山前向盆地迁移的趋势。

关键词: 博-阿断裂, 构造变形, 右旋走滑, 吐鲁番盆地

Abstract:

The Bolokenu-Aqikekuduke Fault(Bo-A Fault)is a large-scale right-lateral strike-slip fault zone, which starts in Kazakhstan in the west, enters China along the NW direction, passes eastward through Alashankou, Lake Aibi and the southwestern margin of Turpan Basin, and terminates in the Jueluotage Mountain, with a total length of about 1 000km. At present, researches on the fault mainly focus on the area from Lake Alakol to Jinghe.
Through satellite images, it can be found that the Bo-A Fault enters the southwestern margin of the Turpan Basin in the SE direction, and offset various landforms such as river terraces and alluvial fans, forming clear linear features on the surface, which indicates that there have been obvious activities since late Quaternary in this fault section. However, no detailed research has been carried out on the tectonic deformation characteristics of the Bo-A Fault in this area. The active characteristics of the faults in the southwestern margin of the Turpan Basin are studied, and the results are helpful to understand the role of the Bo-A Fault in the Cenozoic tectonic deformation of the Tianshan Mountains.
The study area is located in the southwestern margin of the Turpan Basin, where three stages of alluvial-proluvial fans are developed. The first-stage alluvial-proluvial fan is called Fan3, which was formed earlier and its distribution is relatively limited, formed roughly in the early late Pleistocene; The second-stage alluvial-proluvial fan is called Fan2, which is the most widely distributed geomorphological surface in the study area. The geomorphic surface in this period was roughly formed from the late Pleistocene to the early Holocene. The third-stage alluvial-proluvial fan is called Fan1, which belongs to the Holocene accumulation, most of which are located at the outlet of gullies near the mountain passes, forming irregular fan-shaped inclined surfaces.
To the west of Zulumutaigou, the fault offset the Fan3 alluvial-proluvial fan, forming dextral dislocation and fault scarp of the gully on the surface. The measurement shows that the amount of the dextral dislocation produced by the fault is between 22m and 40m. The height of the scarp is 3.9~4.2m. The section exposed by the fault shows that the Paleozoic bedrock thrust northward onto the Quaternary gravel layer, and the fault fracture width is about 1m, which reflects that the Bo-A Fault also has a certain thrust component. On the east bank of Zulu Mutaigou, the fault offset the Fan3 alluvial-proluvial fan, and the measurement results show that the offset of the gully is between 46.3m and 70.2m. To sum up, the movement mode of the Bo-A Fault in the study area is dominated by dextral strike-slip.
On the Fan2 alluvial-proluvial fan at the northwest of Zulu Mutaigou, there are two secondary faults arranged in a right-step en-echelon pattern, forming high scarps with a height of 1.6~3.9m on the surface. Trench profiles reveal that both faults are SW-dipping thrust faults, thrusting from south to north, and they are preliminarily judged to be formed by the expansion of the Bo-A Fault into the basin.
There are mainly three stages of alluvial-proluvial fans developed in the study area. Although no specific dating results have been obtained in this work, we believe that the age of the Quaternary landforms in the study area is the same as that in the Chaiwopu Basin, which is only separated by a mountain. Quaternary geomorphological ages are basically the same. Through geomorphological comparison, we believe that the age of Fan2 alluvial-proluvial fan is 12~15ka, and the age of Fan3 alluvial-proluvial fan is 74ka. It is estimated that the dextral slip rate of the Bo-A Fault is about 1mm/a since the formation of Fan3, and the vertical movement rate of the fault is about 0.13~0.32mm/a since the formation of Fan2.
According to GPS observations and geological data, the NS-direction shortening rate in the East Tianshan area can reach 2~5mm/a. Through this study, it can be found that the Bo-A Fault also plays a role in regulating the near-NS-trending compressive stress in the East Tianshan area by accommodating the compression strain inside the Tianshan Mountains mainly through the NWW-directed right-lateral strike-slip motion. In addition, in the study area, the youngest fault scarp is located on the Fan2 alluvial-proluvial fan at the north of the main fault. It is preliminarily judged that the latest activity of the Bo-A Fault has a tendency to migrate from the mountain front to the basin.

Key words: Bo-A Fault, structural deformation, right-lateral strike-slip, Turpan Basin

中图分类号:

P315.2

马建, 吴国栋, 李军, 黄帅堂. 吐鲁番盆地西南缘博-阿断裂晚第四纪活动特征[J]. 地震地质, 2022, 44(6): 1469-1483.

MA Jian, WU Guo-dong, LI Jun, HUANG Shuai-tang. STRUCTURAL DEFORMATION CHARACTERISTICS OF BO-A FAULT IN THE SOUTHWESTERN MARGIN OF TURPAN BASIN[J]. SEISMOLOGY AND GEOLOGY, 2022, 44(6): 1469-1483.

图/表 11

图 1 天山地区的主要活动构造 BAF 博-阿断裂; DKF 东别列克断裂; DTF 达尔布特断裂; FYF 富蕴断裂; KSHF 喀什河断裂; NLTF 那拉提斯断裂; BLTF 北轮台断裂; XDF 兴地断裂

Fig. 1 The distribution of active faults in Tianshan region.

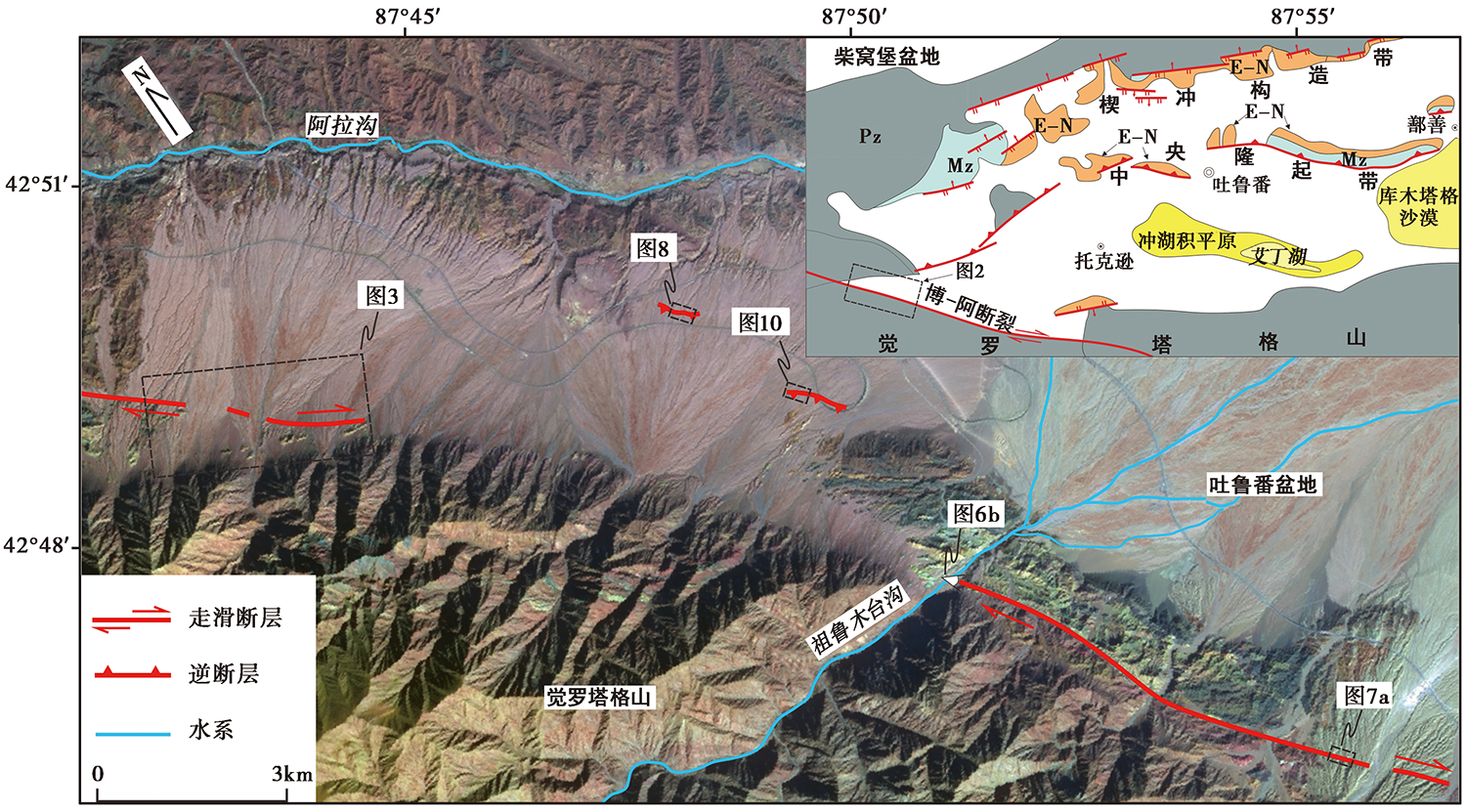

图 2 研究区的断裂分布图

Fig. 2 The distribution of fault in the study area.

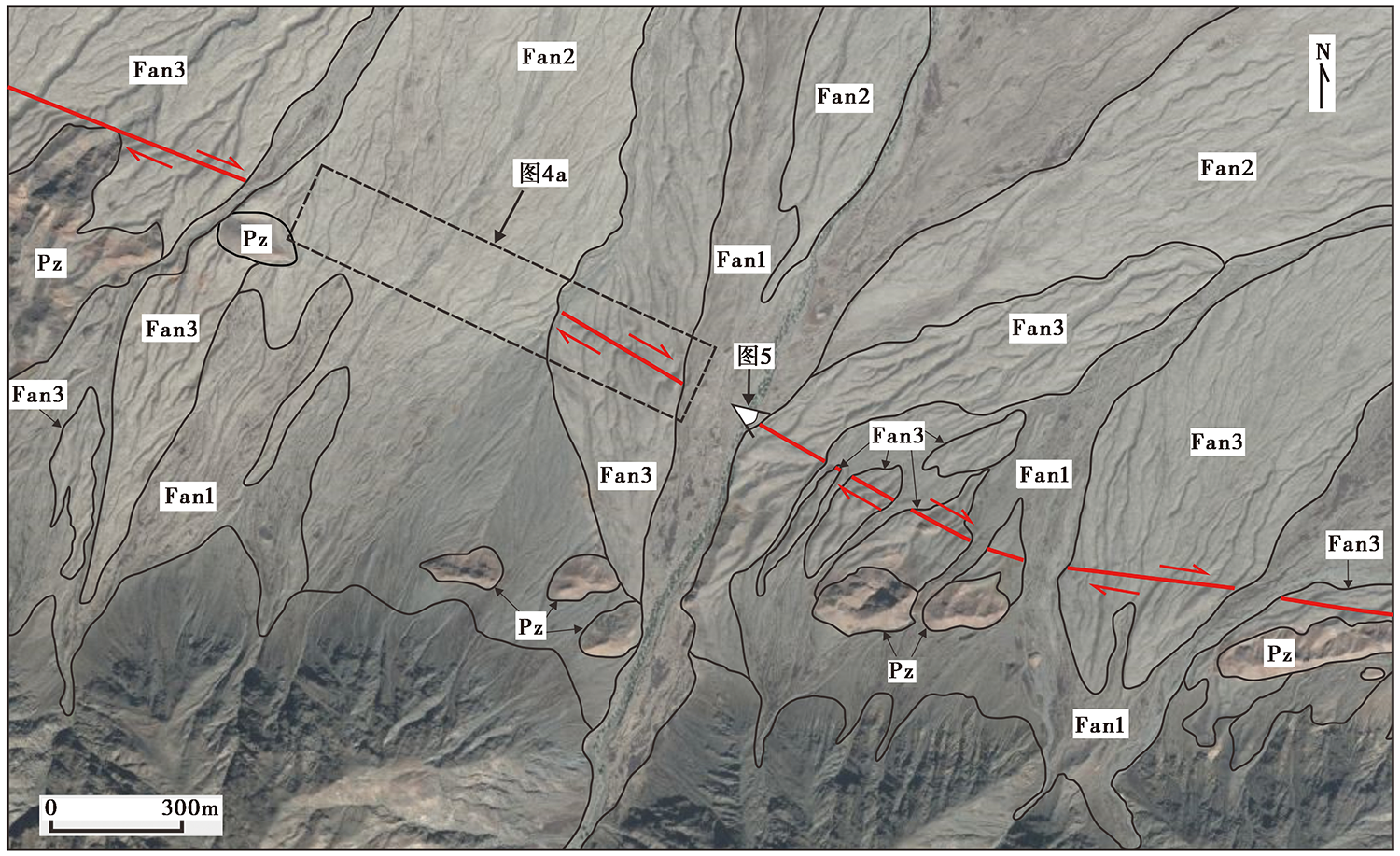

图 3 研究区内的冲洪积扇分布图

Fig. 3 The distribution of alluvial-proluvial fan in the study area.

图 4 祖鲁木台沟以西冲沟的右旋位错及陡坎剖面图

Fig. 4 Gully right-lateral displacement and scarp section in the west of Zulumutaigou.

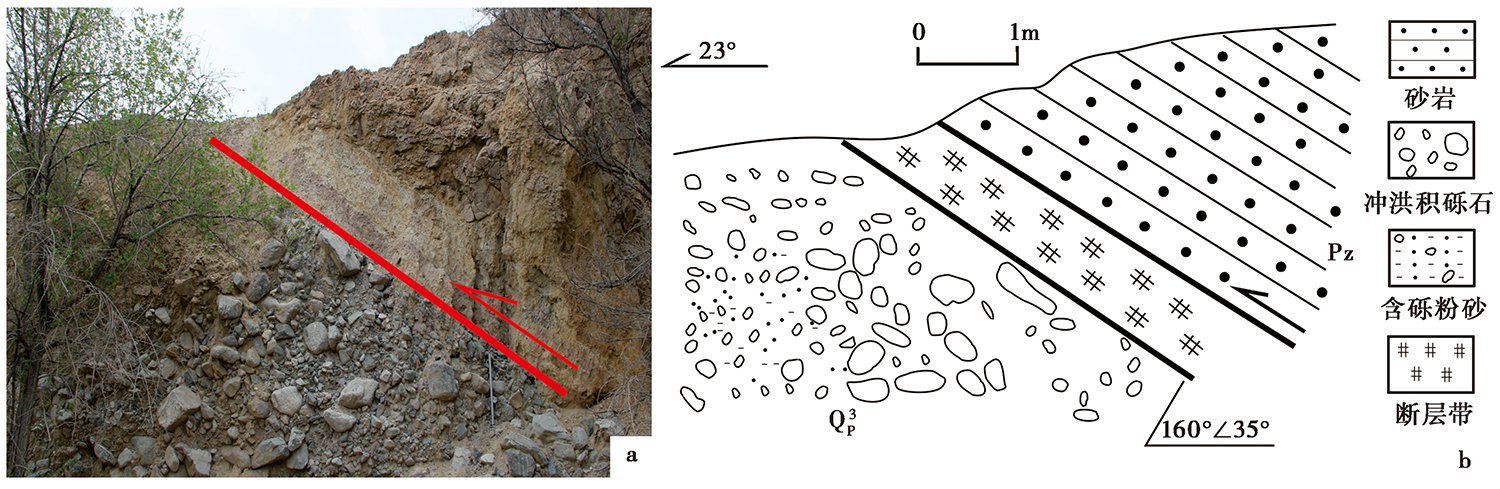

图 5 祖鲁木台沟以西断裂的剖面及素描图

Fig. 5 Fault section in the west of Zulumutaigou.

图 6 祖鲁木台沟东岸断裂的地貌特征

Fig. 6 Pictures of faulted landforms in the east of Zulumutaigou.

图 7 祖鲁木台沟以东冲沟的右旋位错

Fig. 7 Gully right-lateral displacement in the east of Zulumutaigou.

图 8 西段的陡坎影像(位置见图 2)及实测剖面

Fig. 8 Image of fault scarp(See Fig. 2 for location)and measured sections.

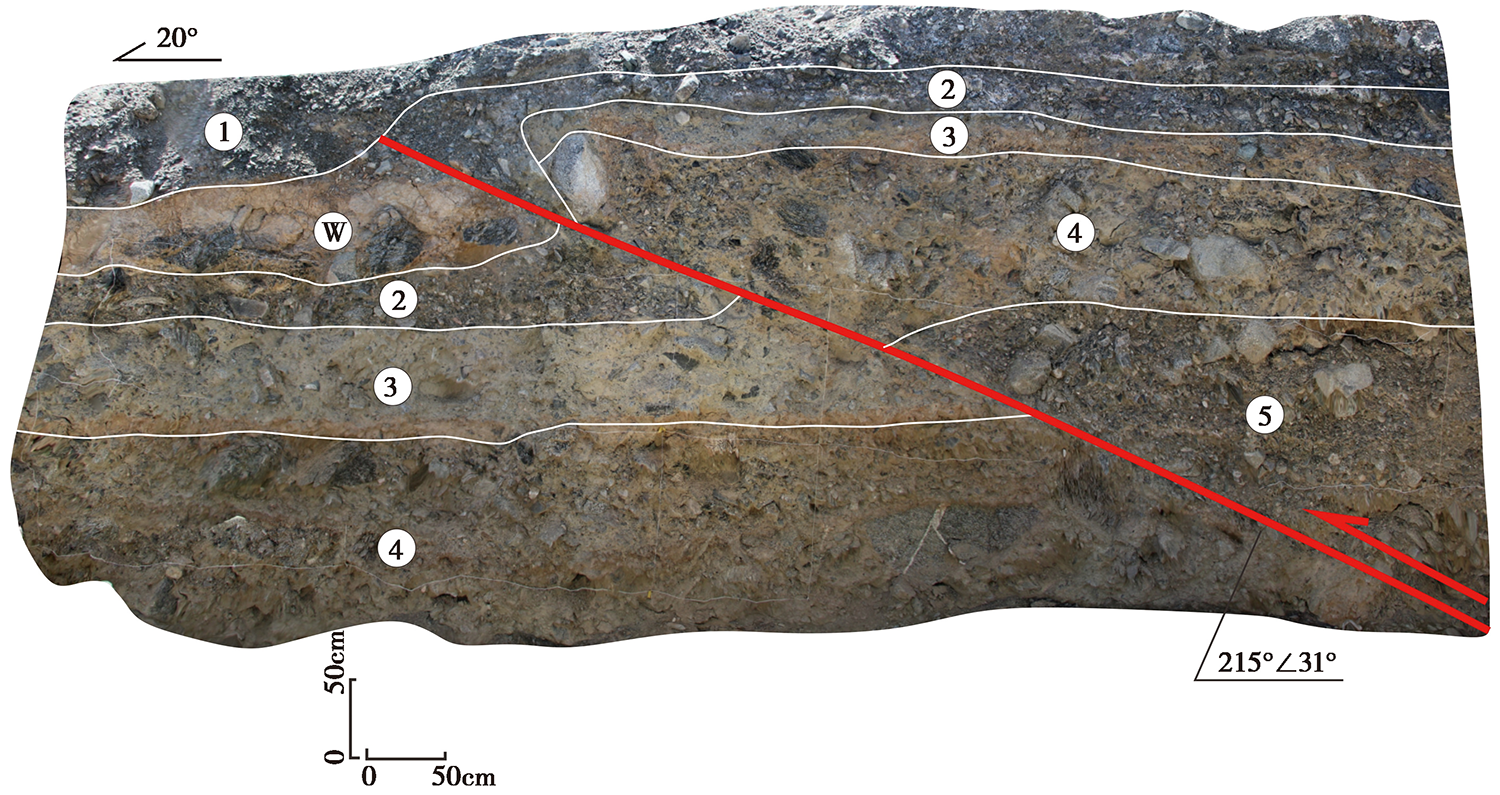

图 9 TC1的照片

Fig. 9 Photo of the trench TC1.

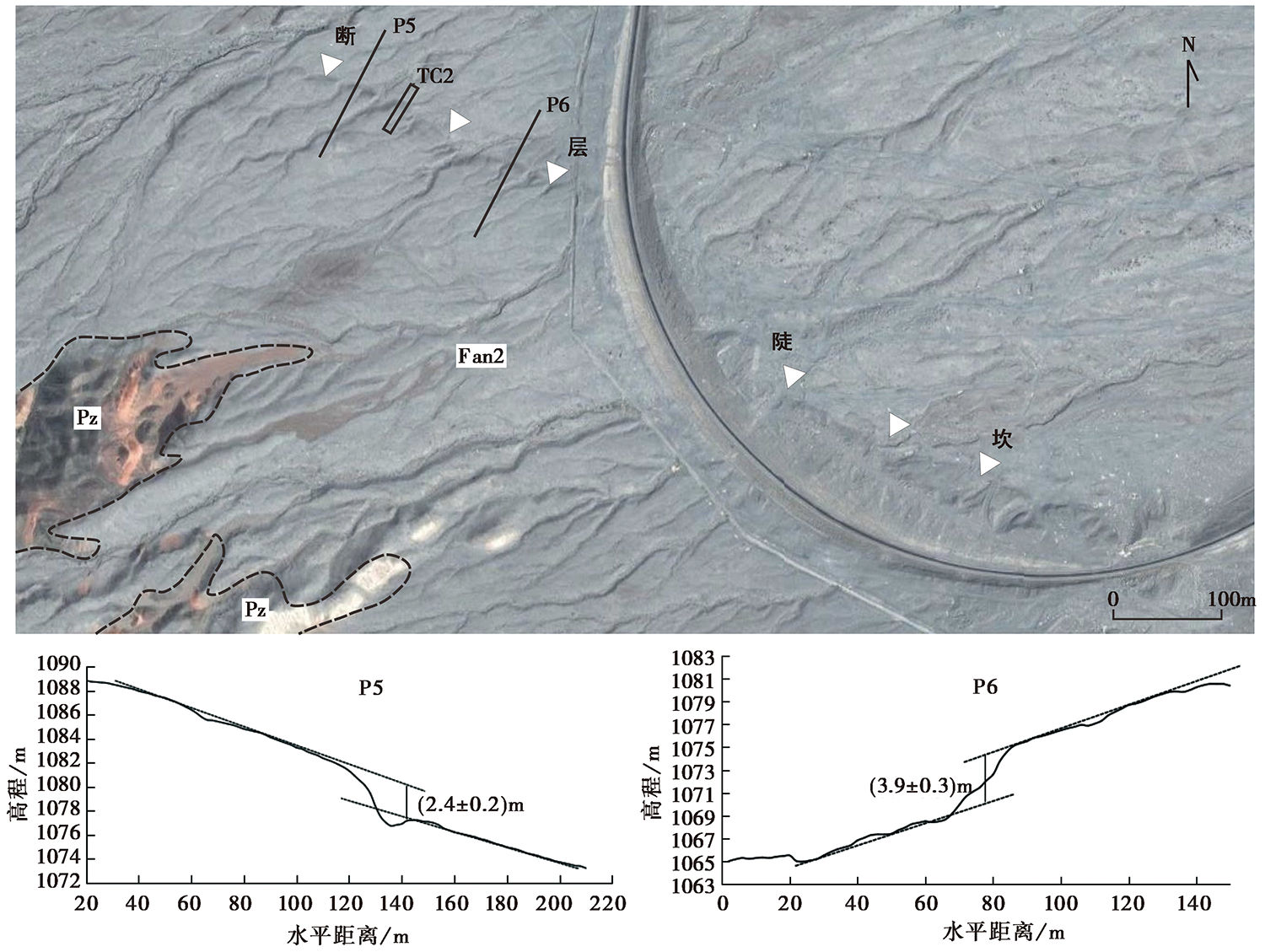

图 10 东段断层陡坎的影像(位置见图 2)及实测剖面

Fig. 10 Image of fault scarp(See Fig. 2 for location)and the measured sections.

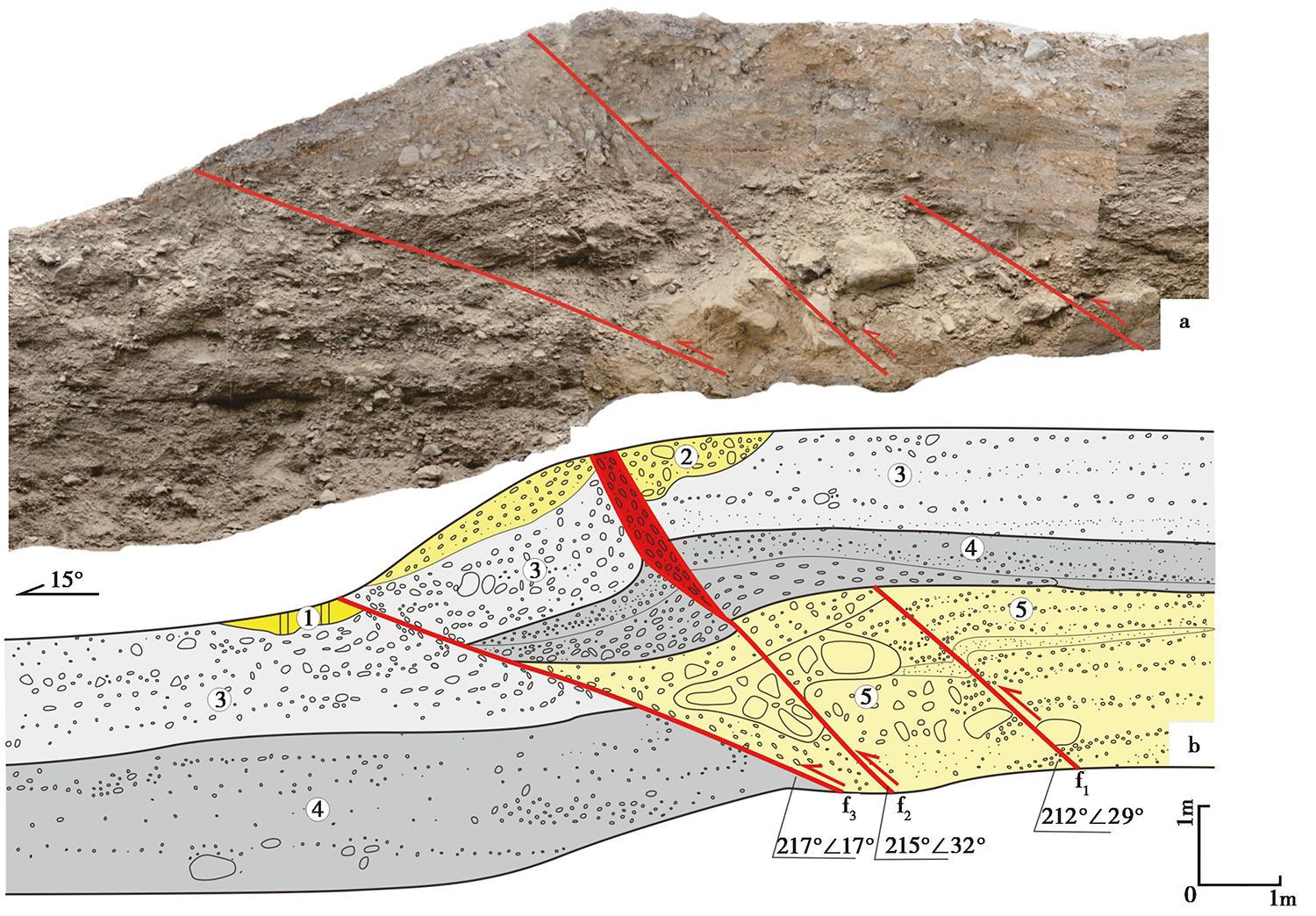

图 11 TC2的照片及素描图

Fig. 11 Photo and sketch of the trench TC2.
