川滇地区的震源机制解及应力场特征

doi:10.3969/j.issn.0253-4967.2022.01.011

摘要/Abstract

摘要：

基于川滇地区2000年1月—2017年3月2 600次M_L≥3.0地震的震源机制解, 文中对震源机制相对密集的次级地块和断裂带进行了震源机制量化分类和整体应力场反演, 利用1970年1月—2017年3月727次M_L≥4.0地震震源机制解, 采用区域应力张量阻尼方法反演了汶川8.0级和芦山7.0级强震前后川滇地区的主压应力空间分布, 探讨了川滇地区现今应力场的时空演化特征。川滇地区的震源机制总体以走滑型为主, 但龙门山断裂带、四川盆地及其边缘的马边-盐津断裂带的机制类型存在局部差异; 川滇地区的应力场存在明显的分区特征, 自北向南总体呈现顺时针旋转, 四川地区的主压应力方向从西到东经历了EW—NW—EW的转变, 云南地区的主压应力方向在西部地区呈NNE向, 在东部地区则表现为NNW向, 空间上形成倒“V”形; 汶川8.0级和芦山7.0级强震前后, 应力场在龙门山断裂带变化较大, 四川盆地及其周缘变化次之, 其他区域未发生明显变化, 其中震中所在的龙门山断裂带应力场经历了基本应力场—变化应力场—基本应力场的一次完整转变过程。

关键词: 川滇地区, 震源机制解, 区域应力场, 阻尼反演

Abstract:

Based on the focal mechanism solutions of 2 600 M_L≥3.0 earthquakes in Sichuan and Yunnan area from January 2000 to March 2017, the focal mechanism quantitative classification and stress field inversion are carried out for the sub blocks and fault zones with relatively dense focal mechanisms. Using the focal mechanism solutions of 727 M_L≥4.0 earthquakes from January 1970 to March 2017, the regional stress tensor damping method is used to inverse the spatial distribution of principal compressive stress in Sichuan and Yunnan area before and after Wenchuan M_S8.0 and Lushan M_S7.0 earthquakes, and the temporal and spatial evolution characteristics of current stress field are discussed.
The focal mechanisms are distributed mainly in Longmenshan fault zone, Xianshuihe-Anninghe-Zemuhe-Xiaojiang fault zone, Mabian-Yanjin fault zone, Lijiang-Xiaojinhe fault zone, the central Yunnan block, the west Yunnan block and the southwest Yunnan block in Sichuan and Yunnan area. The focal mechanism is mainly strike slip type in Sichuan and Yunnan area, but there are local differences. The Longmenshan fault zone is dominated by thrust type earthquakes, while in the Mabian-Yanjin fault zone, there are relatively more strike slip and thrust type earthquakes. The types of earthquakes in Sichuan Basin are complex, and there is no obvious dominant type. In general, the focal mechanisms of the Longmenshan fault zone and Sichuan Basin earthquakes are affected by strong earthquake and other factors, and the focal mechanism types have good inheritance in Sichuan and Yunnan area.
The stress field in Sichuan and Yunnan area has obvious subarea characteristics, and it rotates clockwise from north to south. The compressive stress in Longmenshan fault zone and Sichuan Basin shows nearly EW direction. It shows NWW direction in the eastern boundary of Sichuan and Yunnan rhombic block and NNW direction in the inner part of rhombic, while it shows NNE direction in the western and southern Yunnan blocks. The principal compressive stress in Sichuan is more complex than that in Yunnan. The principal compressive stress direction in Sichuan experiences EW-NW-EW rotation from west to east, the dip angle is steep in the west and slow in the east, and the stress regime also experiences the transition from normal faulting to strike-slip to thrust. The principal compressive stress direction in Yunnan is NNE in the west and NNW in the east, forming an inverted “V” shape in space, the stress regime is mainly strike-slip and the dip angle is horizontal.
Before and after the Wenchuan M_S8.0 and Lushan M_S7.0 strong earthquakes, the stress field in the Longmenshan fault zone changed greatly, followed by the Sichuan Basin and its surrounding areas, and there was no obvious change in other areas of Sichuan and Yunnan. The stress field in the Longmenshan fault zone experienced a complete transformation process from basic stress field to variable stress field to basic stress field.

Key words: Sichuan and Yunnan area, focal mechanism solution, regional stress field, damped inversion

中图分类号:

P315.2

张致伟, 龙锋, 赵小艳, 王迪. 川滇地区的震源机制解及应力场特征[J]. 地震地质, 2022, 44(1): 170-187.

ZHANG Zhi-wei, LONG Feng, ZHAO Xiao-yan, WANG Di. STUDY ON FOCAL MECHANISM SOLUTION AND STRESS FIELD CHARACTERISTICS IN SICHUAN AND YUNNAN AREA[J]. SEISMOLOGY AND GEOLOGY, 2022, 44(1): 170-187.

图/表 8

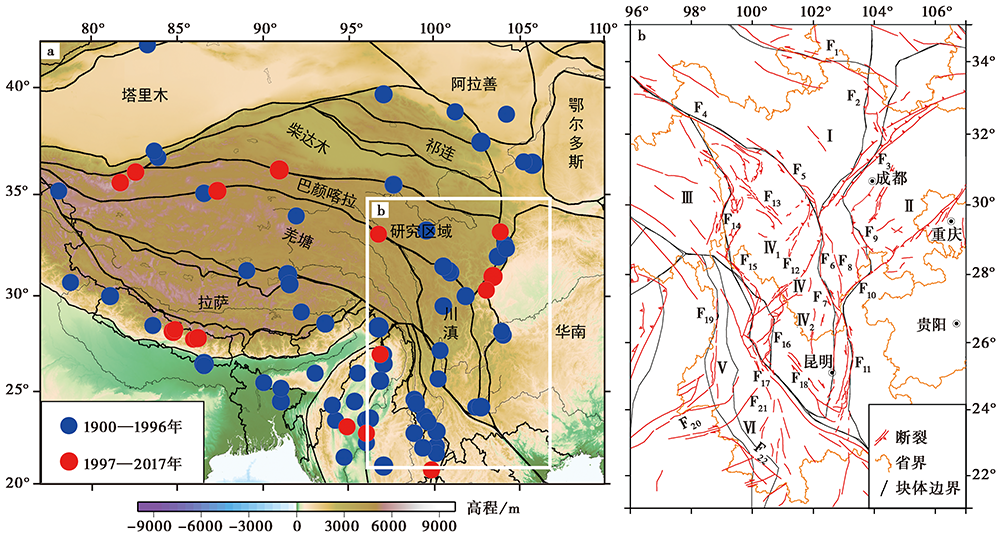

图 1 1900年以来青藏高原M≥7.0地震(a)及川滇地区活动地块与断裂带分布(b) Ⅰ 马尔康地块; Ⅱ 华南地块(四川盆地); Ⅲ 羌塘地块; Ⅳ 川滇菱形地块; Ⅳ1川西北地块; Ⅳ2滇中地块; Ⅴ 滇西地块; Ⅵ 滇西南地块。F1东昆仑断裂带; F2岷江-虎牙断裂带; F3龙门山断裂带; F4甘孜-玉树断裂带; F5鲜水河断裂带; F6安宁河断裂带; F7则木河断裂带; F8大凉山断裂带; F9马边-盐津断裂带; F10莲峰-昭通断裂带; F11小江断裂带; F12丽江-小金河断裂带; F13理塘断裂带; F14金沙江断裂带; F15德钦-中甸-大具断裂带; F16程海断裂带; F17红河断裂带; F18曲江断裂带; F19怒江断裂带; F20畹町断裂带; F21南汀河断裂带; F22龙陵-澜沧断裂带

Fig. 1 Spatial distribution of M≥7.0 earthquakes in the Tibet Plateau since 1900(a) and active block and fault zones in Sichuan and Yunnan area(b).

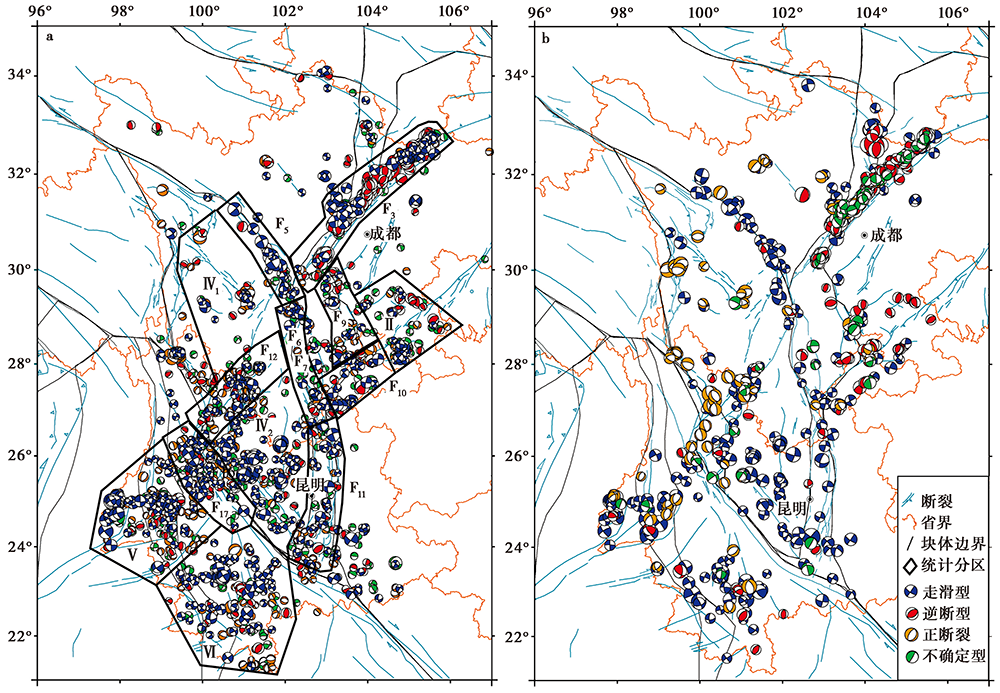

图 2 川滇地区ML≥3.0(a)、 ML≥4.0(b)地震的震源机制分布(地块和断裂同图 1)

Fig. 2 Spatial distribution of ML≥3.0(a), ML≥4.0(b)focal mechanism in Sichuan and Yunnan area(Blocks and faults are same as Fig. 1).

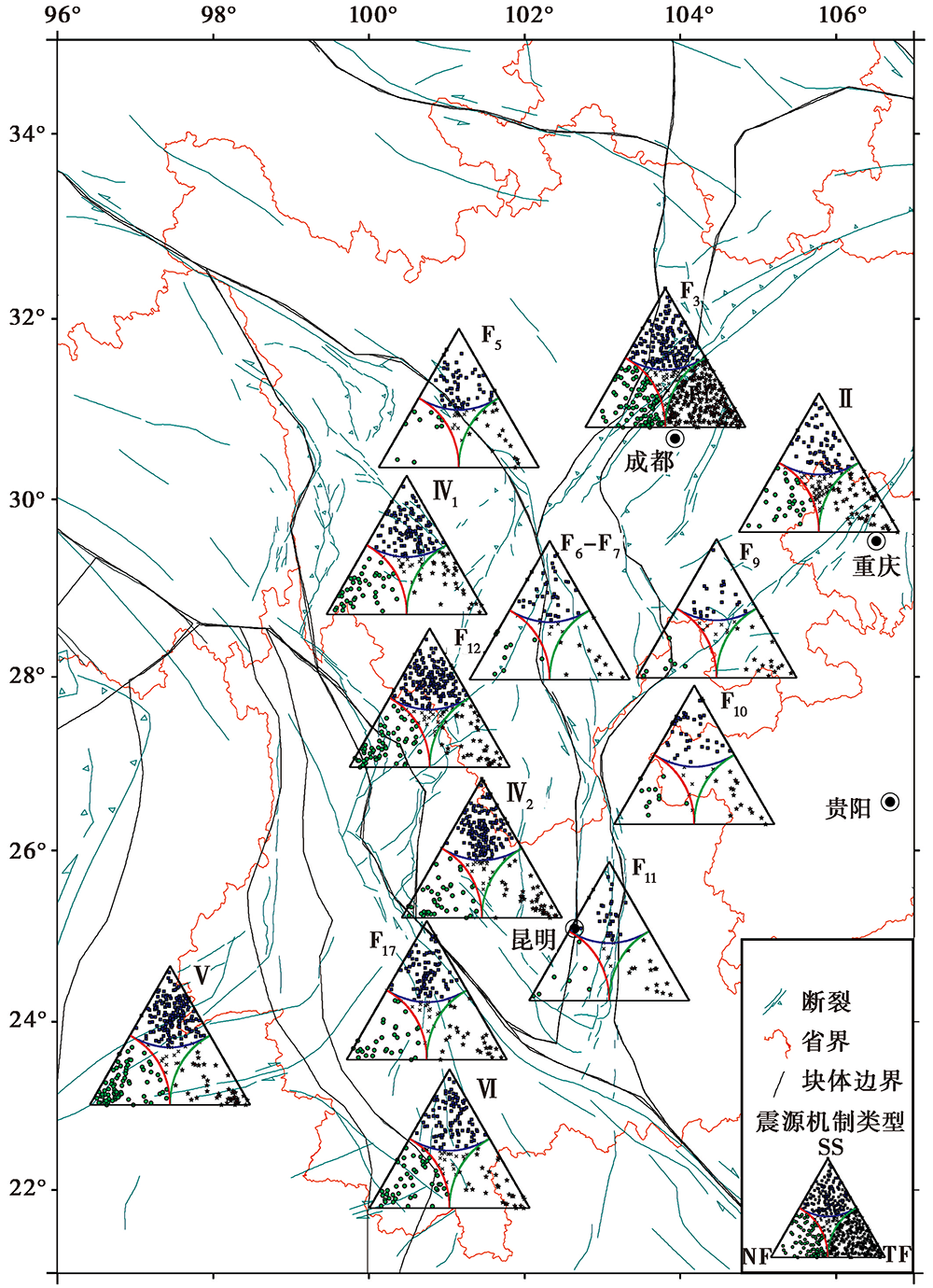

图 3 川滇地区各次级地块及断裂带地震的震源机制分类图

Fig. 3 Classification map of focal mechanisms of sub blocks and fault zones in Sichuan and Yunnan area.

表1 川滇地区各次级地块及断裂带地震震源机制类型的个数及比例

Table 1 Number and proportion of focal mechanism types of sub blocks and fault zones in Sichuan and Yunnan area

分区	地震总数	走滑型		逆冲型		正断型		不确定型
分区	地震总数	个数	比例/%	个数	比例/%	个数	比例/%	个数	比例/%
龙门山断裂带(F₃)	559	163	29	249	45	92	16	55	10
鲜水河断裂带(F₅)	98	58	59	16	17	12	12	12	12
安宁河-则木河断裂带(F₆-F₇)	65	37	57	12	18	9	14	7	11
马边-盐津断裂带(F₉)	51	20	39	16	31	7	14	8	16
莲峰-昭通断裂带(F₁₀)	75	42	56	14	19	11	15	8	10
小江断裂带(F₁₁)	59	31	53	15	25	7	12	6	10
丽江-小金河断裂带(F₁₂)	300	177	59	40	13	58	20	25	8
红河断裂带(F₁₇)	163	85	52	27	17	33	20	18	11
华南地块(四川盆地)(Ⅱ)	189	62	33	50	27	27	14	50	26
川西北地块(Ⅳ₁)	189	99	52	29	15	44	23	17	9
滇中地块(Ⅳ₂)	254	153	60	40	16	40	16	21	8
滇西地块(Ⅴ)	330	190	58	46	14	78	23	16	5
滇西南地块(Ⅵ)	198	100	51	29	14	48	24	21	11

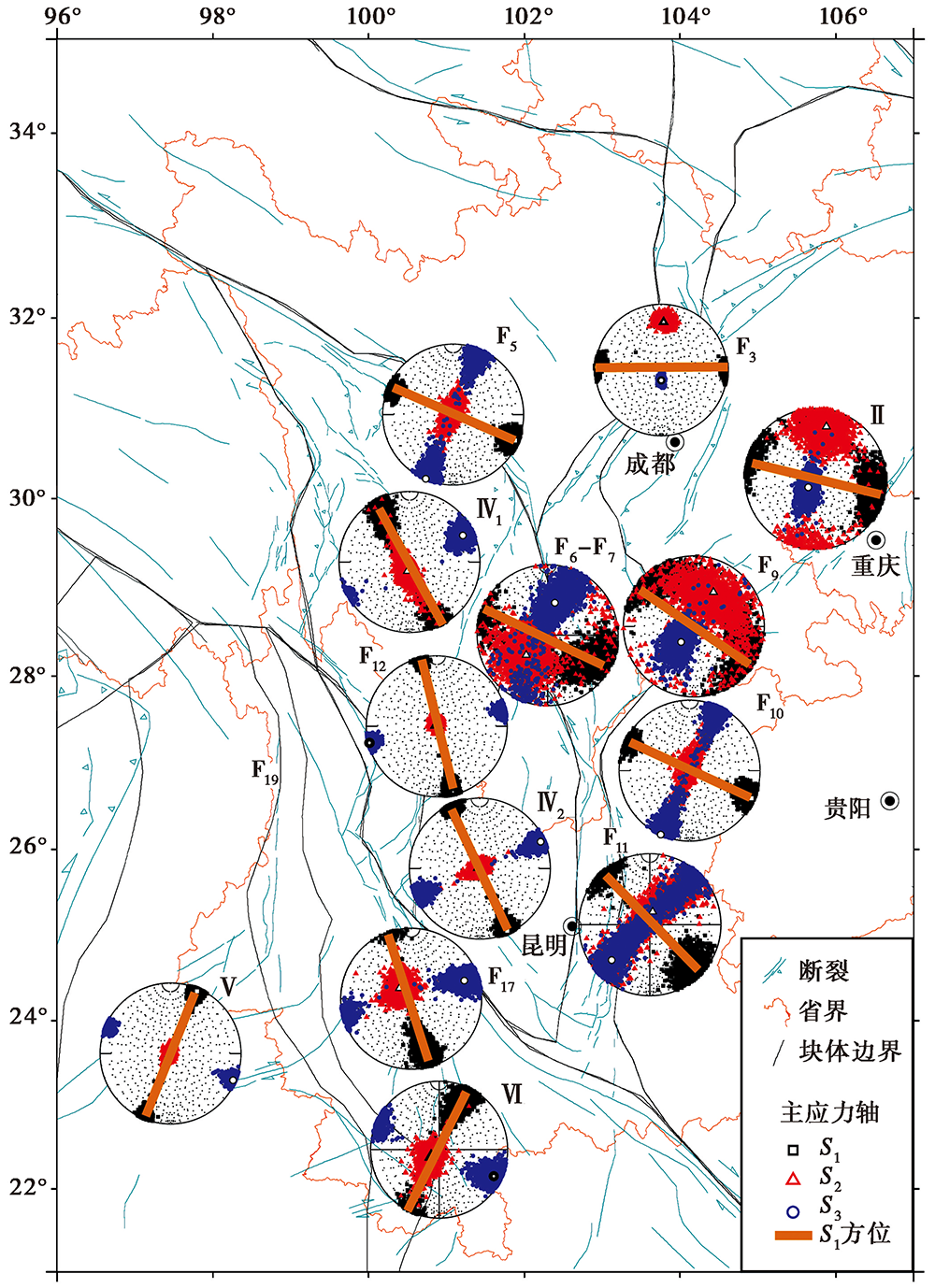

图 4 川滇地区各次级块体及断裂带的应力主轴球面投影图

Fig. 4 Projection of principal stress axis of sub blocks and fault zones in Sichuan and Yunnan area.

表2 川滇地区各次级地块及断裂带的应力主轴参数

Table 2 Parameters of principal stress axis of sub blocks and fault zones in Sichuan and Yunnan area

分区	S₁		S₂		S₃		Var	R	应力类型	其他结果
分区	走向 /(°)	倾角 /(°)	走向 /(°)	倾角 /(°)	走向 /(°)	倾角 /(°)	Var	R	应力类型	S₁ /(°)	来源
龙门山断裂带(F₃)	87	1	3	18	180	72	0.28	0.45	逆冲	98	①
鲜水河断裂带(F₅)	113	3	56	87	157	1	0.26	0.72	走滑	80	②
安宁河-则木河断裂带(F₆-F₇)	118	18	133	45	13	40	0.32	0.66	走滑	127	①
马边-盐津断裂带(F₉)	122	4	30	31	141	58	0.31	0.33	逆冲	305	①
莲峰-昭通断裂带(F₁₀)	114	2	58	88	156	0	0.24	0.63	走滑	127	②
小江断裂带(F₁₁)	133	11	12	69	227	18	0.32	0.82	走滑	314	①
丽江-小金河断裂带(F₁₂)	166	3	7	87	104	1	0.26	0.41	走滑	147	②
红河断裂带(F₁₇)	166	21	48	65	71	13	0.30	0.51	走滑	169	②
华南地块(四川盆地)(Ⅱ)	104	8	12	16	41	72	0.32	0.48	逆冲	110~140	③
川西北地块(Ⅳ₁)	152	11	13	75	64	10	0.30	0.34	走滑	160~170	③
滇中地块(Ⅳ₂)	156	2	82	86	66	3	0.28	0.60	走滑	150~160	③
滇西地块(Ⅴ)	23	2	114	87	113	2	0.27	0.38	走滑	25	①
滇西南地块(Ⅵ)	24	16	131	73	116	7	0.31	0.41	走滑	16	①

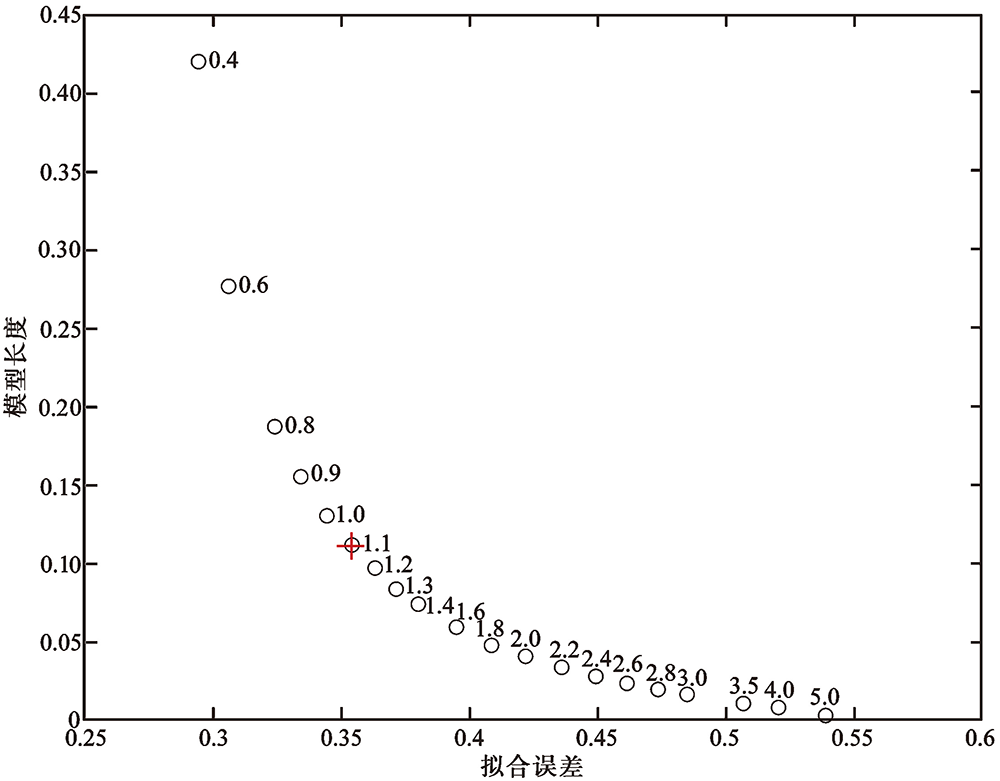

图 5 模型长度与数据拟合误差之间的折中曲线图

Fig. 5 Trade-off curve between model length and data variance for the full range of possible values of damping parameter e.

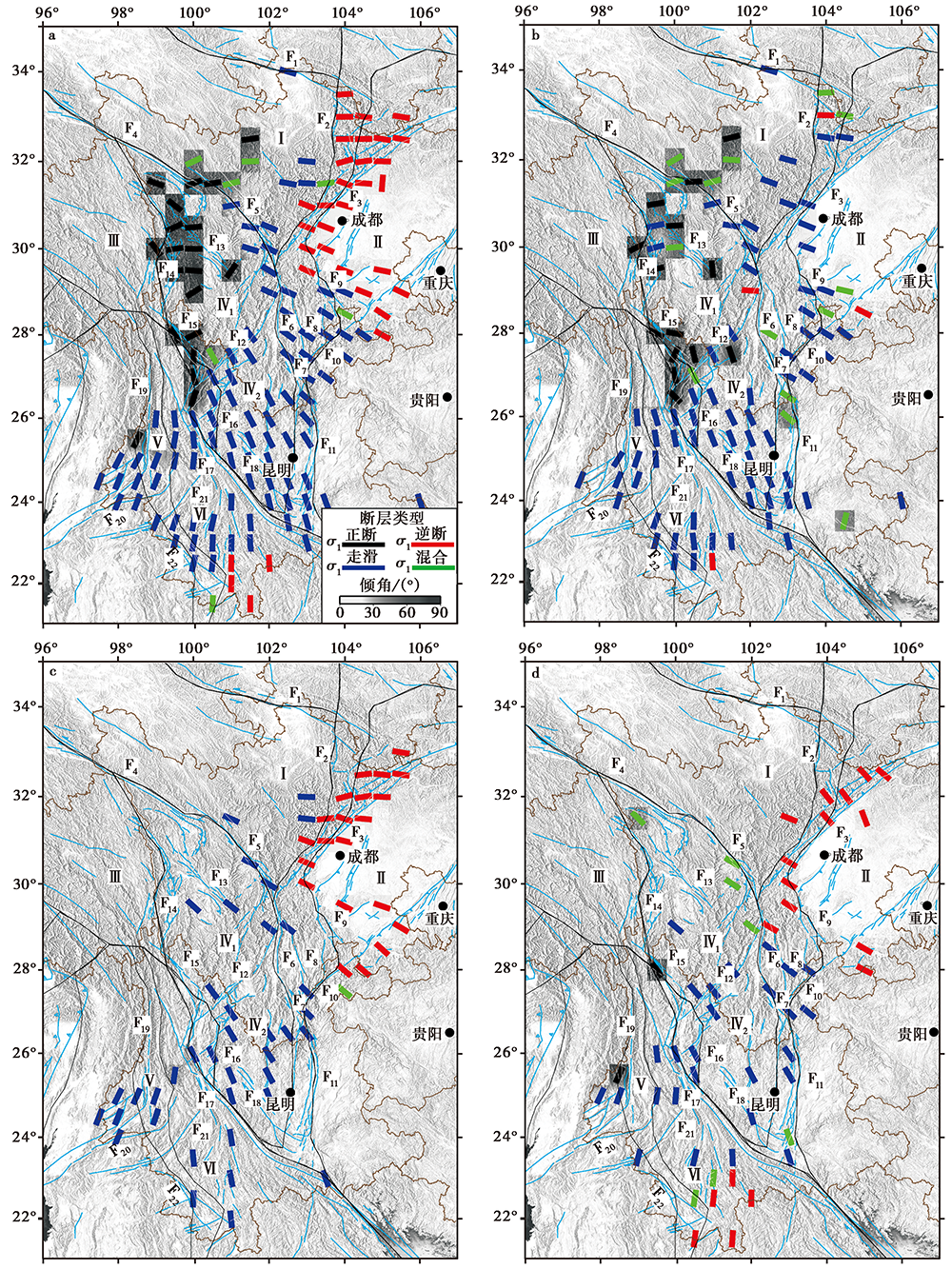

图 6 川滇地区应力场的时空演化特征 a 1970年1月1日—2017年3月31日; b 1970年1月1日—2008年5月11日; c 2008年5月12日—2013年4月19日;d 2013年4月20日—2017年3月31日

Fig. 6 Spatial-temporal evolution of stress field in Sichuan and Yunnan area.

参考文献 50

[1]	陈化然, 陈连旺, 马宏生, 等. 2004. 川滇地区应力场演化与强震间相互作用的三维有限元模拟[J]. 地震学报, 26(6): 567-575.
	CHEN Hua-ran, CHEN Lian-wang, MA Hong-sheng, et al. 3-D finite element modeling for evolution of stress field and interaction among strong earthquakes in Sichuan-Yunnan region[J]. Acta Seismologica Sinica, 26(6): 567-575. (in Chinese)
[2]	成尔林. 1981. 四川及其邻区现代构造应力场和现代构造运动特征[J]. 地震学报, 3(3): 231-241.
	CHENG Er-lin. 1981. Recent tectonic stress field and tectonic movement of the Sichuan Province and its vicinity[J]. Acta Seismologica Sinica, 3(3): 231-241. (in Chinese)
[3]	程万正, 刁桂苓, 吕弋培, 等. 2003. 川滇地块的震源力学机制、运动速率和活动方式[J]. 地震地质, 25(1): 71-87.
	CHENG Wan-zheng, DIAO Gui-ling, LÜ Yi-pei, et al. 2003. Focal mechanisms, displacement rate and mode of motion of the Sichuan-Yunnan block[J]. Seismology and Geology, 25(1): 71-87. (in Chinese)
[4]	程万正, 阮祥, 张永久. 2006. 川滇次级地块震源机制解类型与一致性参数[J]. 地震学报, 28(6): 561-573.
	CHENG Wan-zheng, RUAN Xiang, ZHANG Yong-jiu. 2006. Types of focal mechanism solutions and parameter consistency of the sub-blocks in Sichuan and Yunnan Provinces[J]. Acta Seismologica Sinica, 28(6): 561-573. (in Chinese)
[5]	崔效锋, 谢富仁. 1999. 利用震源机制解对中国西南及邻区进行应力分区的初步研究[J]. 地震学报, 21(5): 513-522.
	CUI Xiao-feng, XIE Fu-ren. 1999. Preliminary research to determine stress districts from focal mechanism solutions in Southwest China and its adjacent area[J]. Acta Seismologica Sinica, 21(5): 513-522. (in Chinese)
[6]	崔效锋, 谢富仁, 张红艳. 2006. 川滇地区现代构造应力场分区及动力学意义[J]. 地震学报, 28(5): 451-461.
	CUI Xiao-feng, XIE Fu-ren, ZHANG Hong-yan. 2006. Recent tectonic stress field zoning in Sichuan-Yunnan region and its dynamic interest[J]. Acta Seismologica Sinica, 28(5): 451-461. (in Chinese)
[7]	崔效锋, 谢富仁, 赵建涛. 2005. 中国及邻区震源机制解的分区特征[J]. 地震地质, 27(2): 298-307.
	CUI Xiao-feng, XIE Fu-ren, ZHAO Jian-tao. 2005. The regional characteristic of focal mechanism solutions in China and its adjacent areas[J]. Seismology and Geology, 27(2): 298-307. (in Chinese)
[8]	邓起东, 张培震, 冉勇康, 等. 2002. 中国活动构造基本特征[J]. 中国科学(D辑), 32(12): 1020-1030.
	DENG Qi-dong, ZHANG Pei-zhen, RAN Yong-kang, et al. 2002. Basic features of activity structures of China[J]. Science in China(Ser D), 32(12): 1020-1030. (in Chinese)
[9]	刁桂苓, 王海涛, 高国英, 等. 2005. 伽师强震系列应力场的转向过程[J]. 地球物理学报, 48(5): 1062-1068.
	DIAO Gui-ling, WANG Hai-tao, GAO Guo-ying, et al. 2005. A deflection process for the stress field of the Jiashi strong earthquake sequence[J]. Chinese Journal of Geophysics, 48(5): 1062-1068. (in Chinese)
[10]	刁桂苓, 徐锡伟, 陈于高, 等. 2011. 汶川 M_W7.9 和集集 M_W7.6 地震前应力场转换现象及其可能的前兆意义[J]. 地球物理学报, 54(1): 128-136.
	DIAO Gui-ling, XU Xi-wei, CHEN Yu-gao, et al. 2011. The precursory significance of tectonic stress field transformation before the Wenchuan M_W7.9 earthquake and the Chi-Chi M_W7.6 earthquake[J]. Chinese Journal of Geophysics, 54(1): 128-136. (in Chinese)
[11]	黄骥超, 万永革, 盛书中, 等. 2016. 汤加-克马德克俯冲带现今非均匀应力场特征及其动力学意义[J]. 地球物理学报, 59(2): 578-592.
	HUANG Ji-chao, WAN Yong-ge, SHENG Shu-zhong, et al. 2016. Heterogeneity of present-day stress field in the Tonga-Kermadec subduction zone and its geodynamic significance[J]. Chinese Journal of Geophysics, 59(2): 578-592. (in Chinese)
[12]	阚荣举, 张四昌, 晏凤桐, 等. 1977. 我国西南地区现代构造应力场与现代构造活动特征的探讨[J]. 地球物理学报, 20(2): 96-109.
	KAN Rong-ju, ZHANG Si-chang, YAN Feng-tong, et al. 1977. Present tectonic stress field and its relation to the characteristics of recent tectonic activity in southwestern China[J]. Chinese Journal of Geophysics, 20(2): 96-109. (in Chinese)
[13]	李君, 王勤彩, 崔子健, 等. 2019. 川滇菱形块体东边界及邻区震源机制解与构造应力场空间分布特征[J]. 地震地质, 41(6): 1395-1412. doi: 10.3969/j.issn.0253-4967.2019.06.006. DOI
	LI Jun, WANG Qin-cai, CUI Zi-jian, et al. 2019. Characteristics of focal mechanisms and stress field in the eastern boundary of Sichuan-Yunnan block and its adjacent area[J]. Seismology and Geology, 41(6): 1395-1412. (in Chinese)
[14]	梁尚鸿, 李幼铭, 束沛镒, 等. 1984. 利用区域地震台网$\bar{P}$、$\bar{S}$振幅比资料测定小震震源参数[J]. 地球物理学报, 27(3): 249-257.
	LIANG Shang-hong, LI You-ming, SHU Pei-yi, et al. 1984. On the determining of source parameters of small earthquakes by using amplitude ratios of $\bar{P}$ and $\bar{S}$ from regional network observations[J]. Chinese Journal of Geophysics, 27(3): 249-257. (in Chinese)
[15]	刘平江, 刁桂苓, 宁杰远. 2007. 川滇地块的震源机制解特征及其地球动力学解释[J]. 地震学报, 29(5): 449-458.
	LIU Ping-jiang, DIAO Gui-ling, NING Jie-yuan. 2007. Fault plane solutions in Sichuan-Yunnan rhombic block and their dynamic implications[J]. Acta Seismologica Sinica, 29(5): 449-458. (in Chinese)
[16]	罗钧, 赵翠萍, 周连庆. 2014. 川滇块体及周边区域现今震源机制和应力场特征[J]. 地震地质, 36(2): 405-421. doi: 10.3969/j.issn.0253-4967.2014.02.011. DOI
	LUO Jun, ZHAO Cui-ping, ZHOU Lian-qing. 2014. Characteristics of focal mechanisms and stress field of the Chuan-Dian rhombic block and its adjacent regions[J]. Seismology and Geology, 36(2): 405-421. (in Chinese)
[17]	马文涛, 徐锡伟, 曹忠权, 等. 2008. 震源机制解分类与川滇及邻近地区最新变形特征[J]. 地震地质, 30(4): 926-934.
	MA Wen-tao, XU Xi-wei, CAO Zhong-quan, et al. 2008. Classification of focal mechanism solutions and characteristics of latest crustal deformation of Sichuan-Yunnan region and its adjacency[J]. Seismology and Geology, 30(4): 926-934. (in Chinese)
[18]	钱洪, 沈钧礼, 黄进, 等. 1980. 西南地区近代构造应力场和地壳运动特征的实验研究[J]. 地震研究, 3(3): 60-67.
	QIAN Hong, SHEN Jun-li, HUANG Jin, et al. 1980. Experimental study on the tectonic stress field and crustal movement in the southwest of China[J]. Journal of Seismological Research, 3(3): 60-67. (in Chinese)
[19]	孙业君, 赵小艳, 黄耘, 等. 2017. 云南地区震源机制及应力场特征[J]. 地震地质, 39(2): 390-407. doi: 10.3969/j.issn.0253-4967.2017.02.009. DOI
	SUN Ye-jun, ZHAO Xiao-yan, HUANG Yun, et al. 2017. Characteristics of focal mechanisms and stress field of Yunnan area[J]. Seismology and Geology, 39(2): 390-407. (in Chinese)
[20]	万永革. 2015. 联合采用定性和定量断层资料的应力张量反演方法及在乌鲁木齐地区的应用[J]. 地球物理学报, 58(9): 3144-3156.
	WAN Yong-ge. 2015. A grid search method for determination of tectonic stress tensor using qualitative and quantitative data of active faults and its application to the Urumqi area[J]. Chinese Journal of Geophysics. 58(9): 3144-3156. (in Chinese)
[21]	万永革, 盛书中, 许雅儒, 等. 2011. 不同应力状态和摩擦系数对综合P波辐射花样影响的模拟研究[J]. 地球物理学报, 54(4): 994-1001.
	WAN Yong-ge, SHENG Shu-zhong, XU Ya-ru, et al. 2011. Effect of stress ratio and friction coefficient on composite P wave radiation patterns[J]. Chinese Journal of Geophysics. 54(4): 994-1001. (in Chinese)
[22]	王勤彩, 陈章立, 郑斯华. 2009. 汶川大地震余震序列震源机制的空间分段特征[J]. 科学通报, 54(16): 2348-2354.
	WANG Qin-cai, CHEN Zhang-li, ZHENG Si-hua. 2009. Spatial segmentation characteristic of focal mechanism of aftershock sequence of Wenchuan earthquake[J]. Chinese Science Bulletin, 54(16): 2348-2354. (in Chinese)
[23]	王晓山, 吕坚, 谢祖军, 等. 2015. 南北地震带震源机制解与构造应力场特征[J]. 地球物理学报, 58(11): 4149-4162.
	WANG Xiao-shan, LÜ Jian, XIE Zu-jun, et al. 2015. Focal mechanisms and tectonic stress field in the North-South Seismic Belt of China[J]. Chinese Journal of Geophysics, 58(11): 4149-4162. (in Chinese)
[24]	谢富仁, 陈群策, 崔效峰, 等. 2003. 中国大陆地壳应力环境研究[M]. 北京: 地质出版社.
	XIE Fu-ren, CHEN Qun-ce, CUI Xiao-feng, et al. 2003. Crustal Stress in China[M]. Geological Publishing House. (in Chinese)
[25]	谢富仁, 崔效峰, 赵建涛, 等. 2004. 中国大陆及邻区现代构造应力场分区[J]. 地球物理学报, 47(4): 654-662.
	XIE Fu-ren, CUI Xiao-feng, ZHAO Jian-tao, et al. 2004. Regional division of the recent tectonic stress field in China and adjacent areas[J]. Chinese Journal of Geophysics, 47(4): 654-662. (in Chinese)
[26]	谢富仁, 苏刚, 崔效峰, 等. 2001. 滇西南地区现代构造应力场分析[J]. 地震学报, 23(1): 17-23.
	XIE Fu-ren, SU Gang, CUI Xiao-feng, et al. 2001. Modern tectonic stress field in southwestern Yunnan, China[J]. Acta Seismologica Sinica, 23(1): 17-23. (in Chinese)
[27]	谢富仁, 祝景忠, 梁海庆, 等. 1993. 中国西南地区现代构造应力场基本特征[J]. 地震学报, 15(4): 407-417.
	XIE Fu-ren, ZHU Jing-zhong, LIANG Hai-qing, et al. 1993. Basic characteristics of modern tectonic stress field in southwest China[J]. Acta Seismologica Sinica, 15(4): 407-417. (in Chinese)
[28]	徐纪人, 尾池和夫. 1995. 南北地震带南段应力场特征及其与板块运动的关系[J]. 地震学报, 17(1): 31-40.
	XU Ji-ren, Oike K. 1995. Characteristics of stress field and its relationship with plate movement in the southern part of the North-South Seismic Belt in China[J]. Acta Seismologica Sinica, 17(1): 31-40. (in Chinese) DOI URL
[29]	徐锡伟, 闻学泽, 郑荣章, 等. 2003. 川滇地区活动块体最新构造变动样式及其动力来源[J]. 中国科学(D辑), 33(S1): 151-162.
	XU Xi-wei, WEN Xue-ze, ZHENG Rong-zhang, et al. 2003. Pattern of latest tectonic motion and its dynamics for active blocks in Sichuan-Yunnan region, China[J]. Science in China(Ser D), 33(S1): 151-162. (in Chinese)
[30]	徐锡伟, 陈桂华, 于贵华, 等. 2013. 芦山地震发震构造及其与汶川地震关系讨论[J]. 地学前缘, 20(3): 11-20.
	XU Xi-wei, CHEN Gui-hua, YU Gui-hua, et al. 2013. Seismogenic structure of Lushan earthquake and its relationship with Wenchuan earthquake[J]. Earth Science Frontiers, 20(3): 11-20. (in Chinese)
[31]	许忠淮, 汪素云, 黄雨蕊, 等. 1987. 由多个小震推断的青甘和川滇地区地壳应力场的方向特征[J]. 地球物理学报, 30(5): 476-486.
	XU Zhong-huai, WANG Su-yun, HUANG Yu-rui, et al. 1987. Directions of mean stress axes in southwestern China deduced from microearthquake data[J]. Chinese Journal of Geophysics, 30(5): 476-486. (in Chinese)
[32]	易桂喜, 闻学泽, 张致伟, 等. 2010. 川南马边地区强震危险性分析[J]. 地震地质, 32(2): 282-293. doi: 10.3969/j.issn.0253-4967.2010.02.011. DOI
	YI Gui-xi, WEN Xue-ze, ZHANG Zhi-wei, et al. 2010. Study on potential strong earthquake risk in Mabian area, southern Sichuan[J]. Seismology and Geology, 32(2): 282-293. (in Chinese)
[33]	张培震, 邓起东, 张国民, 等. 2003. 中国大陆的强震活动与活动地块[J]. 中国科学(D辑), 33(S1): 12-20.
	ZHANG Pei-zhen, DENG Qi-dong, ZHANG Guo-min, et al. 2003. Active tectonic blocks and strong earthquakes in the continent of China[J]. Science in China(Ser D), 33(S1): 12-20. (in Chinese)
[34]	张致伟, 阮祥, 王晓山, 等. 2015. 汶川、芦山地震前后四川地区应力场时空演化[J]. 地震, 35(4): 136-146.
	ZHANG Zhi-wei, RUAN Xiang, WANG Xiao-shan, et al. 2015. Spatial-temporal evolution of stress fields in Sichuan area before and after the 2008 Wenchuan and the 2013 Lushan earthquake[J]. Earthquake, 35(4): 136-146. (in Chinese)
[35]	郑勇, 马宏生, 吕坚, 等. 2009. 汶川地震强余震(M_S≥5.6)的震源机制解及其与发震构造的关系[J]. 中国科学(D辑), 39(4): 413-426.
	ZHENG Yong, MA Hong-sheng, LÜ Jian, et al. 2009. Source mechanism of strong aftershocks(M_S≥5.6)of the 2008/05/12 Wenchuan earthquake and the implication for seismotectonics[J]. Science in China(Ser D), 39(4): 413-426. (in Chinese)
[36]	钟继茂, 程万正. 2006. 由多个地震震源机制解求川滇地区平均应力场方向[J]. 地震学报, 28(4): 337-346.
	ZHONG Ji-mao, CHENG Wan-zheng. 2006. Determination of directions of the mean stress field in Sichuan-Yunnan region from a number of focal mechanism solutions[J]. Acta Seismologica Sinica, 28(4): 337-346. (in Chinese)
[37]	Angelier J. 1979. Determination of the mean principal directions of stress for a given fault population[J]. Tectonophysics, 56: T17-T26.
[38]	Frohlich C. 2001. Display and quantitative assessment of distributions of earthquake focal mechanisms[J]. Geophysical Journal International, 144(2): 300-308. DOI URL
[39]	Gephart J W, Forsyth D W. 1984. An improved method for determining the regional stress tensor using earthquake focal mechanism data: Application to the San Fernando earthquake sequence[J]. Journal of Geophysical Research, 89(B11): 9305-9320. DOI URL
[40]	Hardebeck J L, Michael A J. 2006. Damped regional-scale stress inversions: Methodology and examples for southern California and the Coalinga aftershock sequence[J]. Journal of Geophysical Research: Solid Earth, 111(B11): B11310.
[41]	Heidbach O, Tingay M, Barth A, et al. 2010. Global crustal stress pattern based on the World Stress Map database release 2008 [J]. Tectonophysics, 482(1): 3-15. DOI URL
[42]	Liu Q Y, Van Der Hilst R D, Li Y, et al. 2014. Eastward expansion of the Tibetan plateau by crustal flow and strain partitioning across plateau[J]. Pure and Applied Geophysics, 173(8): 2687-2710. DOI URL
[43]	Michael A J. 1984. Determination of stress from slip data: Faults and folds[J]. Journal of Geophysical Research, 89(B13): 11517-11526. DOI URL
[44]	Michael A J. 1991. Spatial variations in stress within the 1987 Whittier Narrows, California, aftershock sequence: New techniques and results[J]. Journal of Geophysical Research: Solid Earth, 96(B4): 6303-6319.
[45]	Tian J H, Luo Y, Zhao L. 2019. Regional stress field in Yunnan revealed by the focal mechanisms of moderate and small earthquakes[J]. Earth and Planetary Physics, 3(3): 243-252. DOI URL
[46]	Wessel P, Smith W H F. 1991. Free software helps map and display data[J]. Eos, Transactions American Geophysical Union, 72(41): 441-446.
[47]	Yang Y H, Liang C T, Fang L H, et al. 2018. A comprehensive analysis on the stress field and seismic anisotropy in eastern Tibet[J]. Tectonics, 37: 1648-1657. DOI URL
[48]	Zhao L, Luo Y, Liu T Y, et al. 2013. Earthquake focal mechanisms in Yunnan and their inference on the regional stress field[J]. Bulletin of the Seismological Society of America, 103(4): 2498-2507. DOI URL
[49]	Zhao L S, Helmberger D V. 1994. Source estimation from broadband regional seismograms[J]. Bulletin of the Seismological Society of America, 84(1): 91-104.
[50]	Zhu L, Helmberger D V. 1996. Advancement in source estimation techniques using broadband regional seismograms[J]. Bulletin of the Seismological Society of America, 86(5): 1634-1641. DOI URL
