新疆巴里坤1842年和1914年2次M71/2历史地震地表破裂的几何展布及特征

徐良鑫^1,²⁾(), 冉勇康^1,)^*(), 梁明剑³⁾, 吴富峣⁴⁾, 高帅坡¹⁾, 王虎⁵⁾

1) 中国地震局地质研究所, 活动构造与火山重点实验室, 北京 100029
2) 陕西省工程地震勘察研究院, 西安 710068
3) 四川省地震局, 成都 610041
4) 湖北省恩施州发展改革研究中心, 恩施 445000
5) 西南交通大学, 成都 611756

收稿日期:2019-03-01 出版日期:2020-02-20 发布日期:2020-02-20
通讯作者: 冉勇康
作者简介:
〔作者简介〕徐良鑫, 男, 1987年生, 2019年于中国地震局地质研究所获构造地质学博士学位, 高级工程师, 主要研究方向为活动构造及相关定年方法, 电话: 029-88465357, E-mail: xlx87@Foxmail.com。
基金资助:
全国重点监视防御区活动断层地震危险性评价(1521044025)子项目“巴里坤盆地南缘断裂填图”、陕西省自然科学基础研究计划项目(2020JQ-980)和国家自然科学基金(41402185)共同资助

GEOMETRIC DISTRIBUTION AND CHARACTERISTICS OF THE SURFACE RUPTURE OF TWO HISTORICAL EARTHQUAKES IN THE BARKOL BASIN, XINJIANG

XU Liang-xin^1,²⁾(), RAN Yong-kang¹⁾(), LIANG Ming-jian³⁾, WU Fu-yao⁴⁾, GAO Shuai-po¹⁾, WANG Hu⁵⁾

1) Key Laboratory of Active Tectonics and Volcano, Institute of Geology, China Earthquake Administration, Beijing 100029, China
2) Academy of Seismic Engineering Surveys, Shaanxi Earthquake Agency, Xi'an 710068, China
3) Sichuan Earthquake Agency, Chengdu 610041, China
4) Development and Reform Research Center of Enshi,Hubei Province, Enshi 445000,China
5) Faculty of Geosciences and Environmental Engineering, Southwest Jiaotong University, Chengdu 611756, China

Received:2019-03-01 Online:2020-02-20 Published:2020-02-20

摘要/Abstract

摘要：

地震地表破裂带是断裂活动最为直观的地貌证据, 其破裂样式、同震位移量及空间几何展布特征是判定活动断裂分段及长期活动习性的重要依据。文中在对新疆巴里坤盆地开展活动断裂调查研究的过程中, 综合遥感解译、野外断裂踏勘、小型无人机航拍、地表断错位移分析以及古地震槽探等方法, 根据在巴里坤盆地南缘断裂西段的雄库尔—邵家庄之间和巴里坤盆地中央东部等多处新发现的总体呈EW向展布的最新地表构造形变遗迹, 并对比历史文献记载中这2次地震震害的分布特征, 进一步厘定了巴里坤1842年和1914年2次M71/2历史地震地表破裂的空间展布及特征。结果表明, 沿巴里坤盆地南缘断裂西段分布的1842年M71/2地震地表破裂带的同震运动以左旋走滑为主, 在雄库尔与巴里坤县城之间呈雁列状展布, 且自西向东还具有向巴里坤盆地中央扩展的趋势。新厘定的地表破裂带长度至少可达65km, 最大水平位错量出现在雄库尔—洛包泉一带, 多个冲沟水系的同震位错平均观测值为(4.1±1.0)m, 并具有约4m的特征位移量, 由此推断1842年M71/2历史地震的震中位置应在雄库尔—洛包泉一带。此外, 位于巴里坤盆地中央东部的奎苏镇—伊吾盆地盐池乡附近的褶皱盲断层带应是1914年M71/2地震的发震构造, 该地震的地表变形带全长约90km, 表现为河漫滩等最新地貌面和冲积砾石层的显著褶皱变形, 并且有多处露头剖面显示与同震褶皱变形伴生的弯矩断层已断错至地表。因此, 1914年M71/2地震的震中位置应在地表构造形变最为显著的奎苏镇东附近。文中取得的研究结果不仅进一步更新和完善了对巴里坤盆地2次历史地震震中位置及发震断裂的认识, 并可为分析区域地震危险性提供重要的参考资料。

关键词: 东天山, 巴里坤, 历史地震, 地表破裂带, 发震构造

Abstract:

Surface rupture zone of historical earthquake is the most intuitive geomorphological response to fault activity. The rupture pattern, coseismic displacement and its geometric spatial distribution are important for determining segmentation and long-term movement behaviors of active fault. In the Barkol Basin of Xinjiang, according to the comprehensive result from remote sensing image interpretation, field surgery, high-resolution small unmanned aerial vehicles photography, terrain deformation measurements and trench excavation on geomorphological points, not only the new surface ruptures of the two M71/2 historical earthquakes in Barkol in 1842 and 1914 were found and defined between Xiongkuer and the southwest of Barkol County in southwestern part of the basin, but also the latest deformation evidence of the EW fold-up faults in the eastern part of the Basin was identified.
Combined with the ancient document analysis of the two historical earthquakes, we finally conclude that the surface rupture zone in the western segment on the southern margin of the Barkol Basin is the seismogenic structure of the M71/2 earthquake in 1842. The surface rupture zone is mainly characterized by left-lateral strike-slip, roughly with en echelon arrangement spreading from Xiongkuer to the south of Barkol County. The length of the surface rupture zone determined by field investigation is at least about 65km, and the maximum horizontal displacement appears around the Xiongkuer Village. At the same time, the surface rupture zone gradually shows more significant thrust extrusion from west to east, and has a tendency of extension towards the central of the Barkol Basin. The average observed displacement of the entire surface rupture obtained by counting the coseismic offsets of multiple faulted gullies is(4.1±1.0)m, with the coseismic characteristic displacement of ~4m. The epicenter position should appear at the place with the largest horizontal dislocation amount near Xiongkuer Village.
In addition, the length of the fold-blind fault zone in the vicinity of the Kuisu Town and the eastward extension to the Yanchi Township of the Yiwu Basin, which was discovered in the center of the Barkol Basin, is about 90km. The folded blind fault causes significant fold deformation in the latest sedimentary strata such as floodplain, and in addition, as shown on many outcrop sections, the bending-moment faults associated with the coseismic fold deformation have ruptured the surface. Therefore, the location of the epicenter should be located at the maximum fold deformation, which is near the Kuisu Town. The new research results not only further improve the understanding of the epicenter location and seismogenic faults of the two historical earthquakes in the Barkol Basin, but also provide an important reference for analyzing regional seismic hazards.

Key words: eastern Tianshan, Barkol, historical earthquakes, seismogenic fault, co-seismic surface rupture

中图分类号:

P315.2

徐良鑫, 冉勇康, 梁明剑, 吴富峣, 高帅坡, 王虎. 新疆巴里坤1842年和1914年2次M71/2历史地震地表破裂的几何展布及特征[J]. 地震地质, 2020, 42(1): 1-17.

XU Liang-xin, RAN Yong-kang, LIANG Ming-jian, WU Fu-yao, GAO Shuai-po, WANG Hu. GEOMETRIC DISTRIBUTION AND CHARACTERISTICS OF THE SURFACE RUPTURE OF TWO HISTORICAL EARTHQUAKES IN THE BARKOL BASIN, XINJIANG[J]. SEISMOLOGY AND GEOLOGY, 2020, 42(1): 1-17.

图/表 12

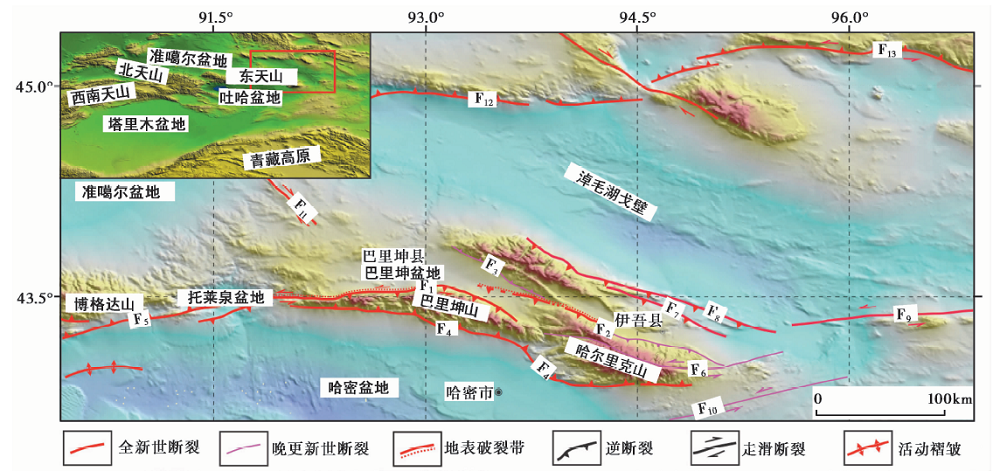

图 1 巴里坤盆地周缘断裂分布简图F1巴里坤盆地南缘断裂; F2奎苏-伊吾盆地南缘断裂; F3巴里坤盆地北缘断裂; F4哈密盆地北缘断裂; F5碱泉子-洛包泉断裂; F6哈尔里克山中央断裂; F7下马崖断裂; F8苇子峡断裂; F9戈壁-阿尔泰断裂; F10骆驼圈子断裂; F11纸房山断裂; F12梧桐泉断裂; F13博格德断裂

Fig. 1 Simplified map of the Late Pleistocene active faults around the Barkol Basin.

图 2 巴里坤盆地晚更新世以来的活动断裂分布图

Fig. 2 Distribution map of Late Pleistocene active faults in the Barkol Basin.

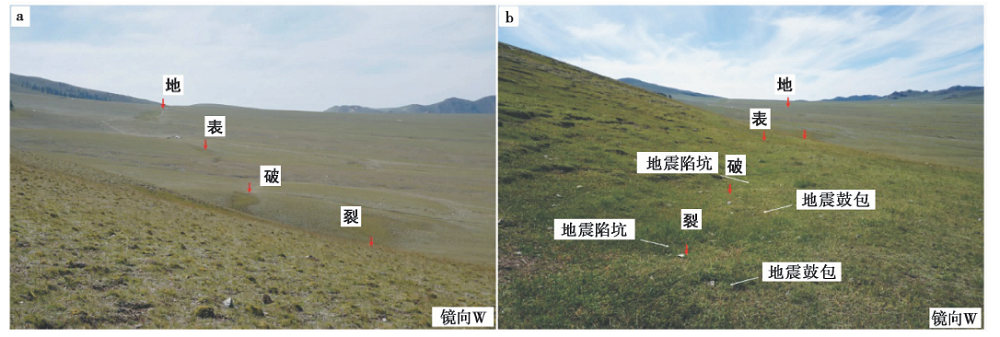

图 3 二场泉一带地表破裂带特征a 雄库尔—二场泉地表破裂带; b 二场泉高台地上的地表破裂地貌特征

Fig. 3 Typical landscape of surface rupture zone at Erchangquan.

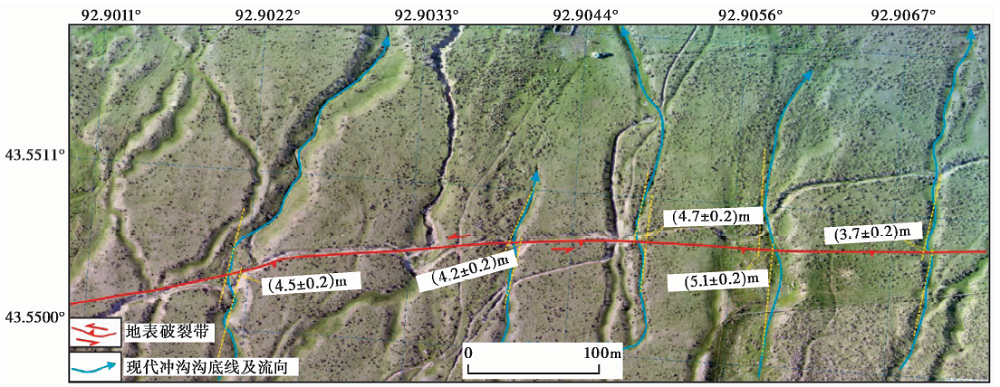

图 4 吴家庄子南一带的地表破裂带展布

Fig. 4 Typical landscape and the distribution of coseismic displacement along the surface rupture zone at Wujiazhuangzi.

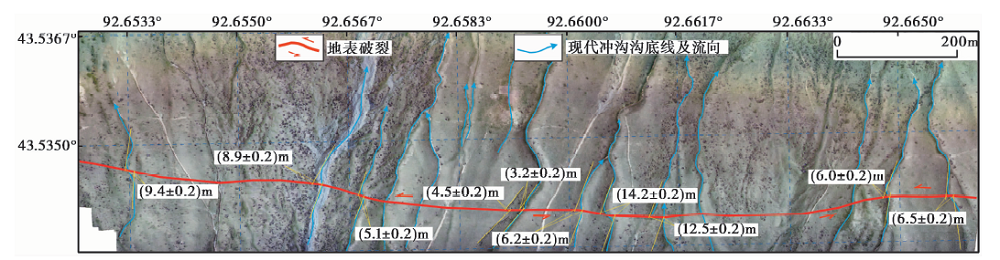

图 5 萨尔乔克南东地表破裂带分布

Fig. 5 Distribution map of the surface rupture and the coseismic displacement at Saerqiaoke.

图 6 尖山南地表破裂带分布及探槽剖面图

Fig. 6 Distribution map of the surface rupture and the trench profile sketch at the south of Jianshan.

图 7 邵家庄西地表破裂带分布

Fig. 7 Distribution map of the surface rupture and the coseismic displacement at the west of Shaojiazhuang.

图 8 乌布拉克附近青疙瘩处跨断层探槽剖面

Fig. 8 Distribution map of the rupture trace and the trench profile sketch at Wubulake.

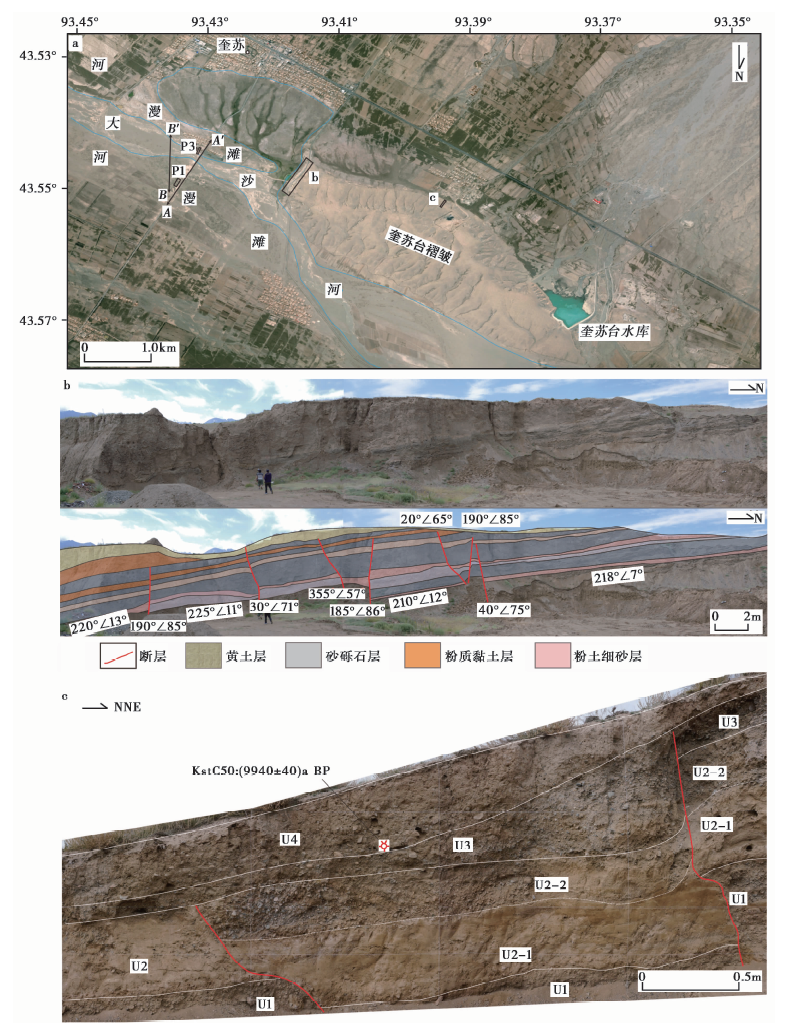

图 9 奎苏台褶皱及剖面素描图

Fig. 9 Distribution map and the profile sketch of the Kuisu activity fold.

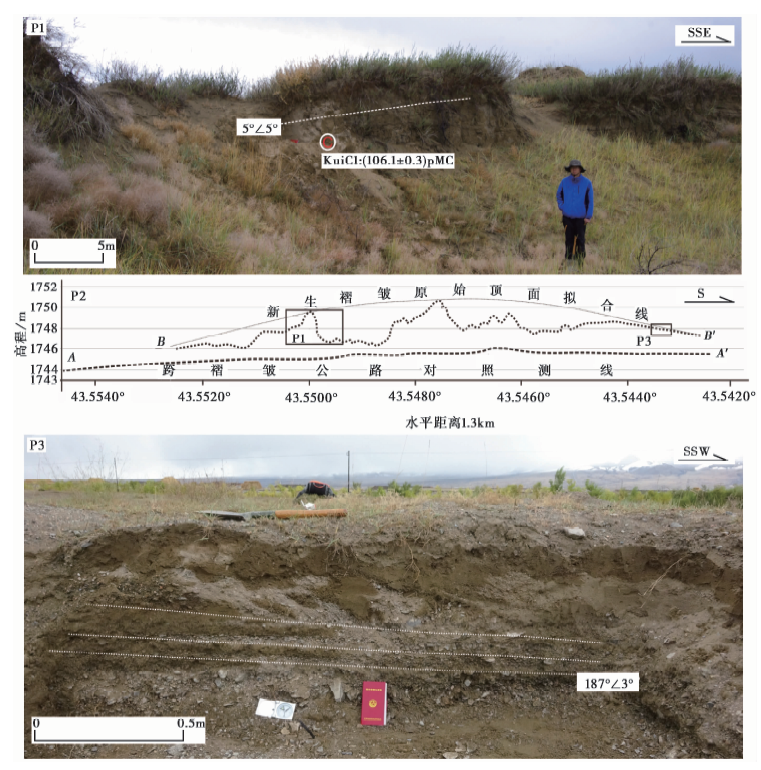

图 10 奎苏大沙河T1级阶地褶皱变形地貌差分GPS测量剖面及剖面解译照片

Fig. 10 The fold-deformed geomorphology GPS profile and the photo of deformed stratum profile on T1 terrace of Dasha River.

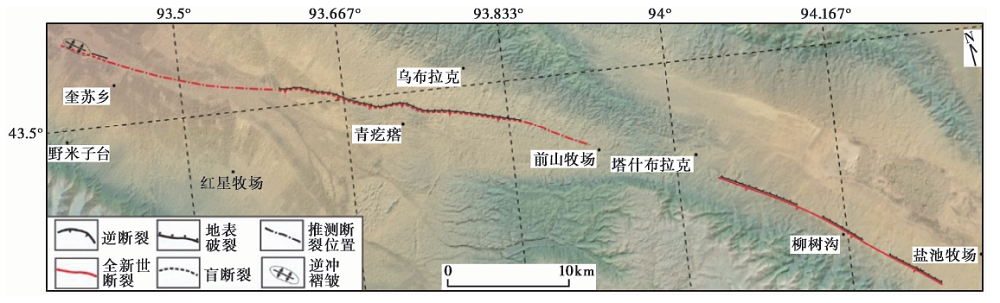

图 11 巴里坤盆地东侧地表破裂带分布简图

Fig. 11 Simplified map of the surface rupture in eastern Barkol Basin.

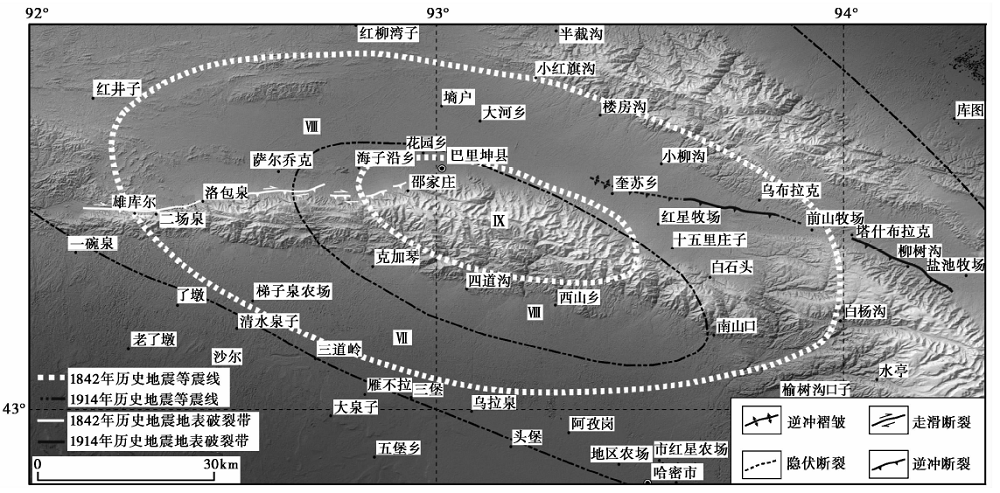

图 12 巴里坤地区地震地表破裂带与历史地震等震线(顾功叙, 1983)
